SiltGuard range of Washdown Separators
Morclean’s SiltGUARD series of Vehicle Wash Silt Interceptors feature robust, chemical-resistant high-density polyethylene (HDPE) tanks, available in various capacities to suit a wide range of applications.
Each unit is designed to withstand wash chemicals and environmental conditions.
NEW FOR 2026 – Wash Water Separation Systems
Effective Wash Water Management for Environmental Compliance
Morclean now offers a range of high-performance vehicle wash silt interceptors, to safely manage and treat contaminated wash water generated during vehicle, equipment and machinery cleaning operations.
SiltGUARDTM models across the range can handle a number of wash cycles before needing to be emptied, making them suitable for vehicle wash facilities including commercial car washes, fleet depots, and industrial operations — with the right capacity available for every scale of use.
The SiltGUARDTM range includes top-entry models, featuring a large 600mm x 600mm clear inspection opening equipped to be fitted with a D400 load-rated grating, allowing contaminated water from the washing process to flow directly into the unit. Morclean also offers a range of single-stage side entry models, which come with an opening to fit a standard solid access cover in place of a grating.
Easy Maintenance
All units are designed with ease of maintenance in mind. Grates are fully accessible for straightforward inspection, cleaning, and debris removal, and the Top-Entry design allows quick servicing without the need for specialised tools.
Silt retention capacities vary across the range, supporting extended periods of low maintenance based on typical vehicle size and application – reducing operational downtime and enhancing efficiency.
About SiltGUARDTM
Morclean’s vehicle wash silt interceptors are specifically engineered to effectively trap silt and debris from vehicles undergoing pressure or brush washing.
Silt traps for general use fitted with standard gratings
Please note pre-2026 models and variants are being phased out and we will be supplying the new SiltGUARDTM range going forward.
SiltGUARDTM 2006 Silt Interceptor Range

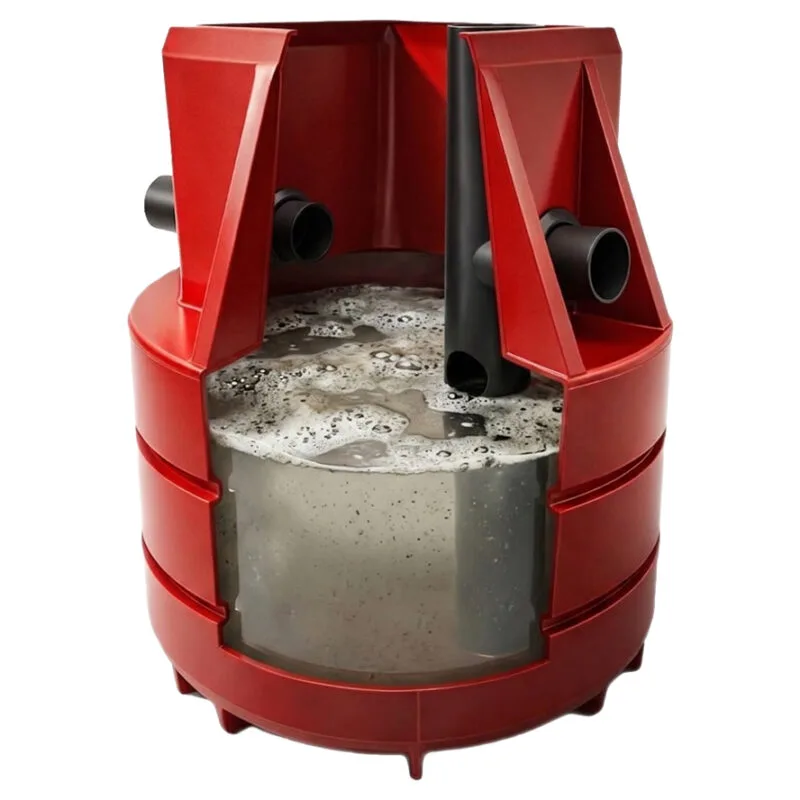

SG1125/SE Side Entry Model
Pipework dia. 160mm
Working cap. 1125L
Silt retention cap. 1500kg

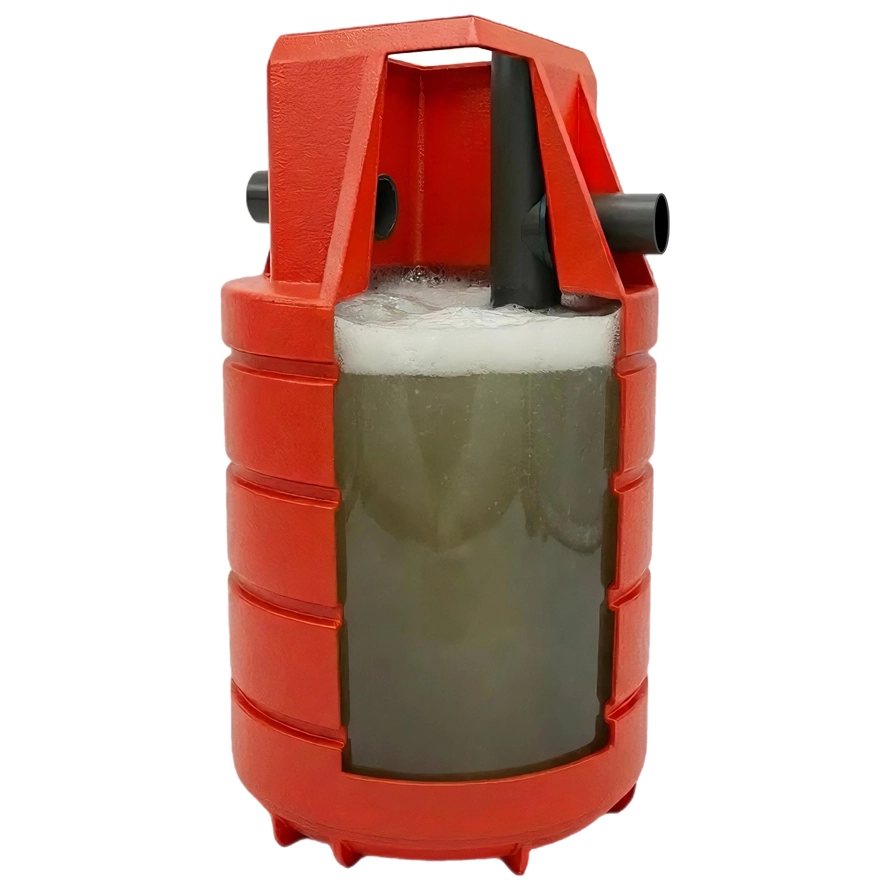

SG2000/SE Side Entry Model
Pipework dia. 160mm
Working cap. 2000L
Silt retention cap. 2550kg

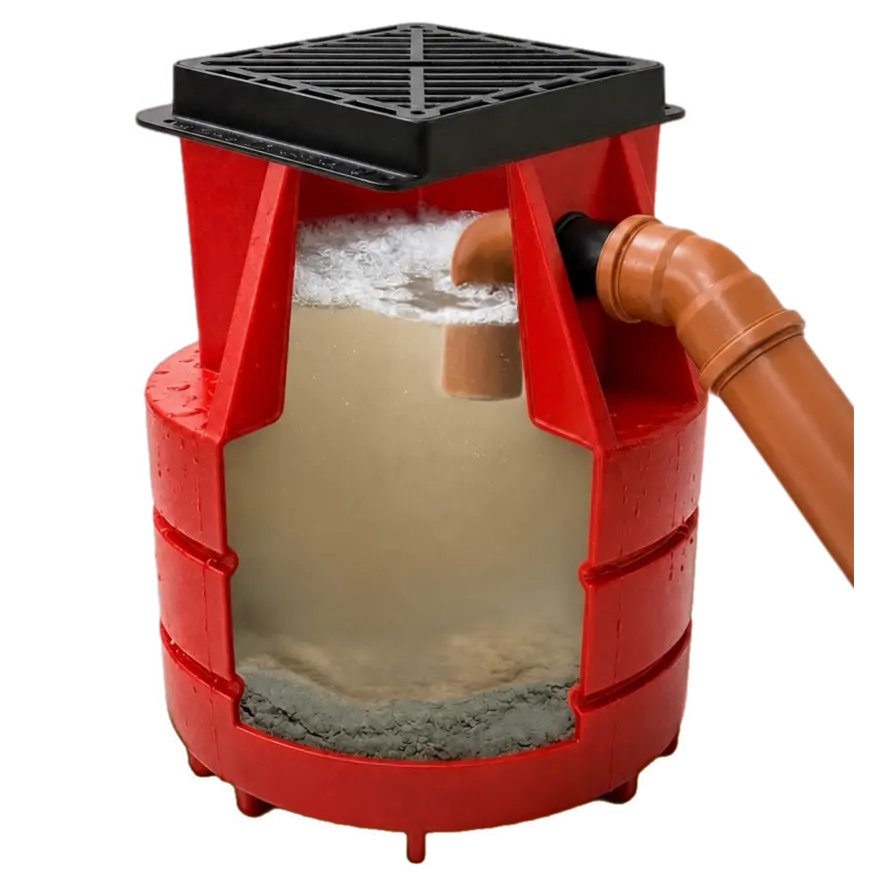

SG1200/TE Top Entry Model
Pipework dia. 160mm
Working cap. 1200L
Silt retention cap. 1750kg

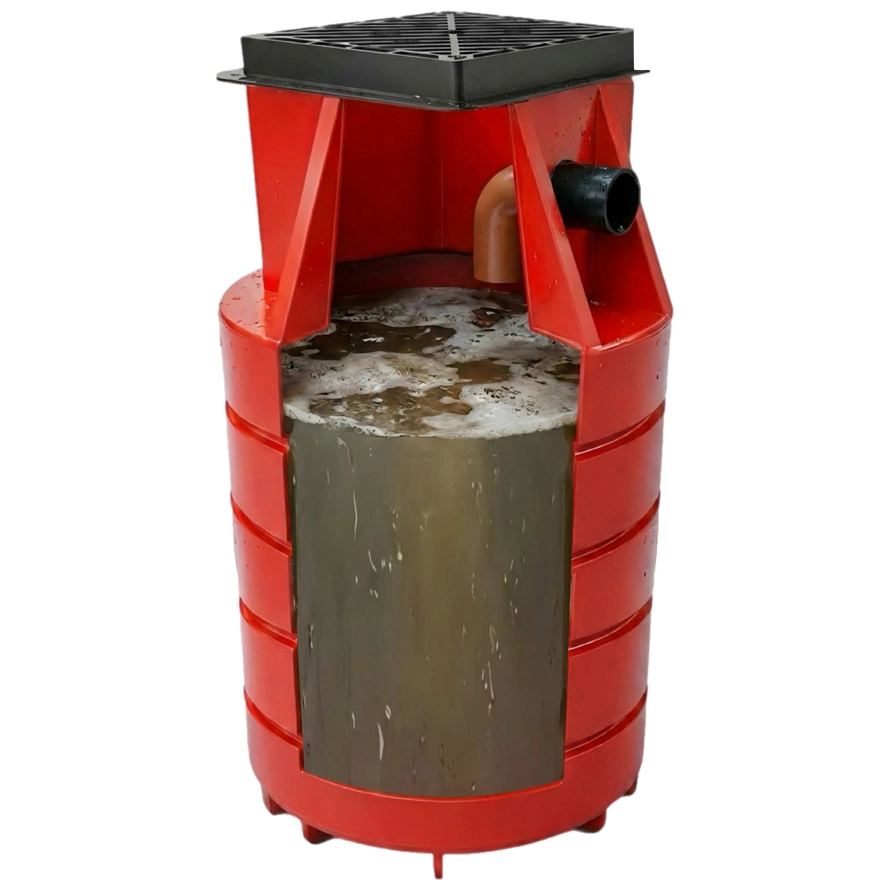

SG2000/TE Top Entry Model
Pipework dia. 160mm
Working cap. 2000L
Silt retention cap. 2800kg

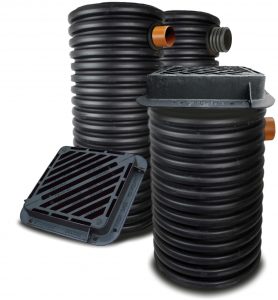

Silt traps for general use fitted with standard gratings
Silt traps for general use fitted with standard gratings. The build up of silt and dirt from vehicles is a major problem particularly from vehicle wash facilities and the silt guard is designed to effectively trap the silt before it enters the drainage system.
The silt guard is an extremely robust range of silt traps that can be installed in granular surround if required. The range features two smaller silt traps at 275 litres and 450 litres silt retention and a larger 1000 litre unit. All the units are supplied with a D400 Heavy Duty open grating for surface water catchment from vehicle wash bays and hard standing areas. For larger silt traps and catch pits please ask for more details.
Features and design
- Designed in accordance to PPG13 & PPG3
- Available in 0.275, 0.450 or 1.0 CuM3
- Supplied with removable standard D400 loading grating
- ‘Heavy Duty’ bodies
- Can be installed with granular surround
- Corrosion Free- Long life expectancy
- Designed and manufactured totally in the UK
