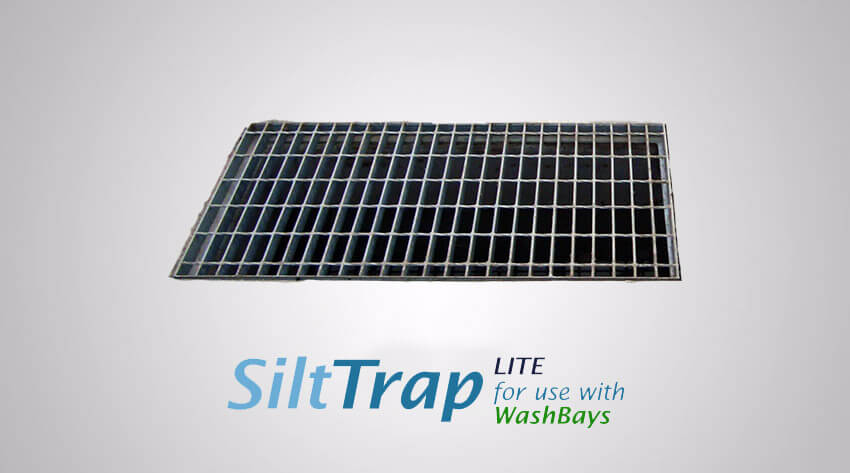

Silt Traps for Lite usage

The capacity of this silt trap is suitable for lighter use and the cleaning of most vehicles. The Morclean Silt Trap Lite comes complete with a B125 Medium Duty or D400 Heavy Duty galvanised hinged grating.

Silt traps are designed to provide a sump for collecting wash water and is typically placed in the centre of a wash bay so that the wash water falls to one collection point.

Placed prior to the interceptor a silt trap collects larger debris and can be accessed via a hinged galvanised grating for easy manual emptying.

As well as a collection point the silt trap collects debris and prevents excessive silt entering the interceptor.

Technical specification and futher information available upon request. Please call the office on 01246 471147 for more info.

PDF Icon

Silt Trap Lite

Click the PDF icon to view information about our Light Use Silt Trap.

(251Kb)

The EA and SEPA Pollution Prevention Guidelines (PPG) which are jointly produced by the Environment Agency for England and Wales, the Scottish Environment Protection Agency, and the Environment and Heritage Service for Northern Ireland (Ref PPG3 / PPG13 / PPG4 / PPG 14) suggest that Class 2 wash bay silt traps and interceptors should be connected only to a mains foul drain, and Class 1 separators to surface drain.

The above assumes you have the consent to connect any outflow to a suitable drain as per the appropriate PPG Guideline. While we always endeavour to provide best advice and accurate information, it the responsibility of the client and/or landowner to comply with the law. Following any guideline doesn’t remove your responsibility to comply with the law and prevent pollution from your activities. Causing or allowing pollution is a criminal offence; compliance with any guidance isn’t a defence. You should make sure that the references to other sources of guidance are still current.

Extract from the Pollution Prevention Guidelines: PPG13

3. Requirements for all vehicle washing and cleaning activities

Activities that produce run-off from the vehicle onto the ground and use cleaning and valeting products should be carried out in areas that are clearly marked and isolated from surface water drainage systems, unmade ground and porous surfaces. These areas are called designated washing bays.

A designated washing bay should be designed so that run-off is:

  • isolated using channels, gullies, gradient (fall on the surface) and kerbs
  • directed to a silt trap or settlement tank to remove larger particles of silt and sediment
  • either collected in a sealed system for reuse, discharged to the public foul sewer with prior permission
  • of the local sewer provider or collected in a sealed system for authorised disposal

You should also:

  • have procedures for everyone, including contractors, that cover where and how vehicle washing and cleaning should be carried out and what to do in a spillage emergency
  • provide notices for designated washing bays saying what they’re for and that washing and cleaning should only be carried out in the bay
  • consider whether a fence or barrier is required to prevent spray or wind drift out of the designated area
  • have procedures and equipment which minimises water use and solid waste production
