Morclean water reclaim systems can be both cost effective and environmentally friendly. Morclean value minimising use of natural resources as well as reducing running costs for our clients. Our Water reclaim systems feed waste water back into the washing process, combined with our already fantastic low water consuming products, fresh water consumption can be greatly reduced.

Morclean water reclaim systems.

Interceptors & Separators

Interceptors & Separators

Water Recycling

Morclean Water Recycling

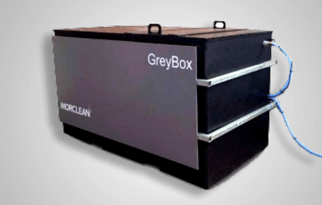

Above Ground Treatment

MORCLEAN EXPERT ADVICE
CALL US
FREEPHONE
0800 1300 402

Water Reclaim System: Features

The Morclean Screen Wash System units are typically a ‘combined reclaim system’. The system can typically be used in conjunction with commercial or forecourt brush and jet wash machines, or in conjunction with a Morclean Screen Wash System, Gantry Wash System or Wheel Wash System unit. The plant generally consists of stainless steel tanks mounted to a common base plate.

Water Reclaim System: Technical

More technical data

The plant utilises either hydrocyclone solids separation, electroflocculation, activated carbon filtration or spotless rinse. Fabrication is in stainless steel grade 304D and is available fully enclosed with frost protection.

Water Recycling System: Advantages

The system combines all of the benefits of a full or partial reclaim with an above ground 3 stage interceptor, all incorporated in a single stainless steel module.

Water Reclaim System: Operation

Water used during vehicle washing etc is typically collected in either a sump or is collected via a pump out of the silt trap. This water is then pumped into stage one of the system and three stages of settlement. Afterwards the water is then ‘Hydrocycloned’ to remove finer solids and is now partially ready for recycling. This water can then also be ‘electroflocculated’ to break down waxes etc (when full reclaim water is required)

Finally water is filtered through activated carbon to remove residual organics such as shampoo etc prior to recycle as rinse water, and pumped back into the system for use.

Water Recycling System: Options

The Water Recycling System can be used in conjunction with most Morclean Systems including Screen Wash Systems, Gantry Wash Systems and Wheel Wash Systems. Morclean would be pleased to liaise with end users, Design or Consulting Engineers, and Civil Engineers with any project
