Flatbed Mounted Automatic Bin Washing

self-contained automated bin wash machine

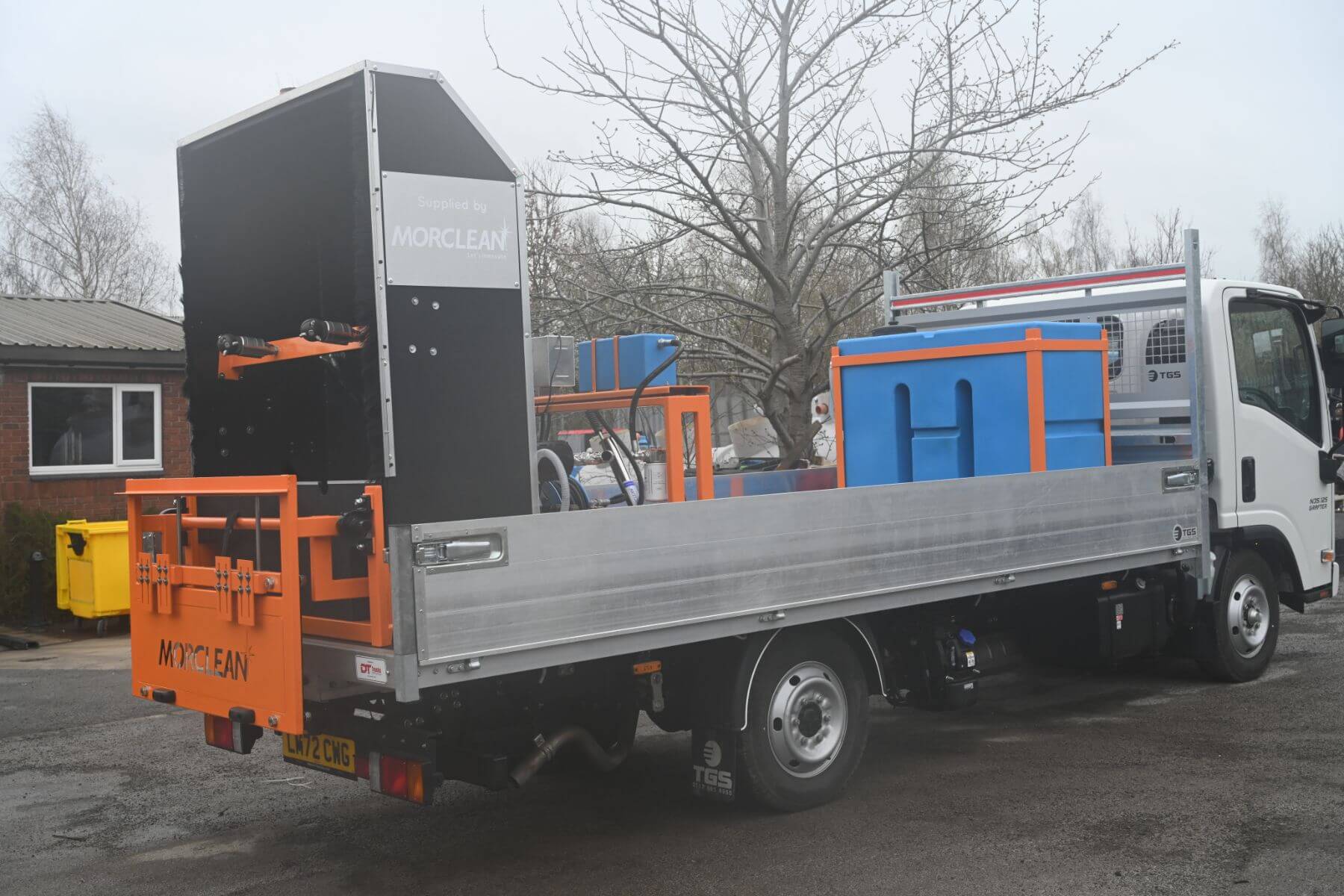

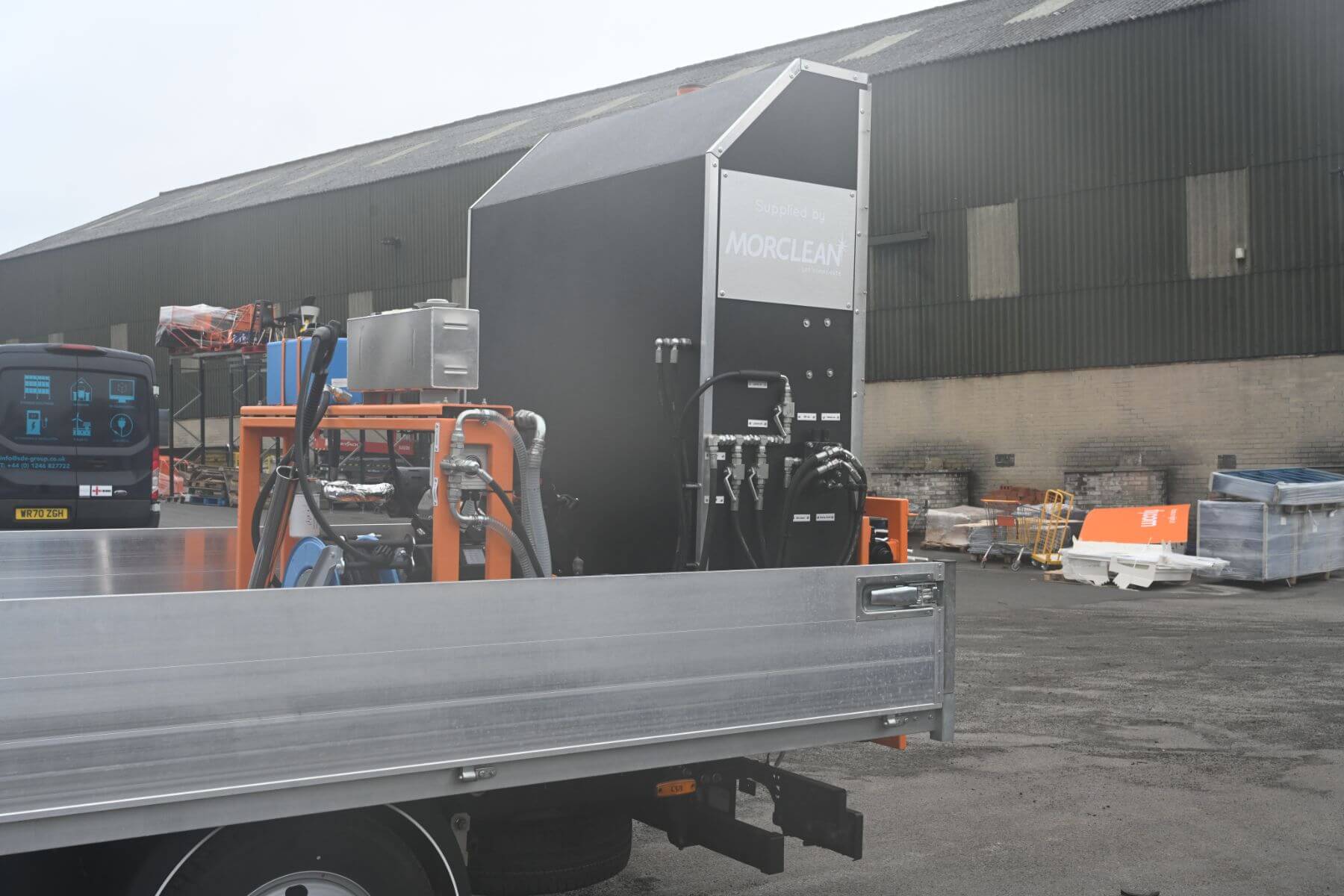

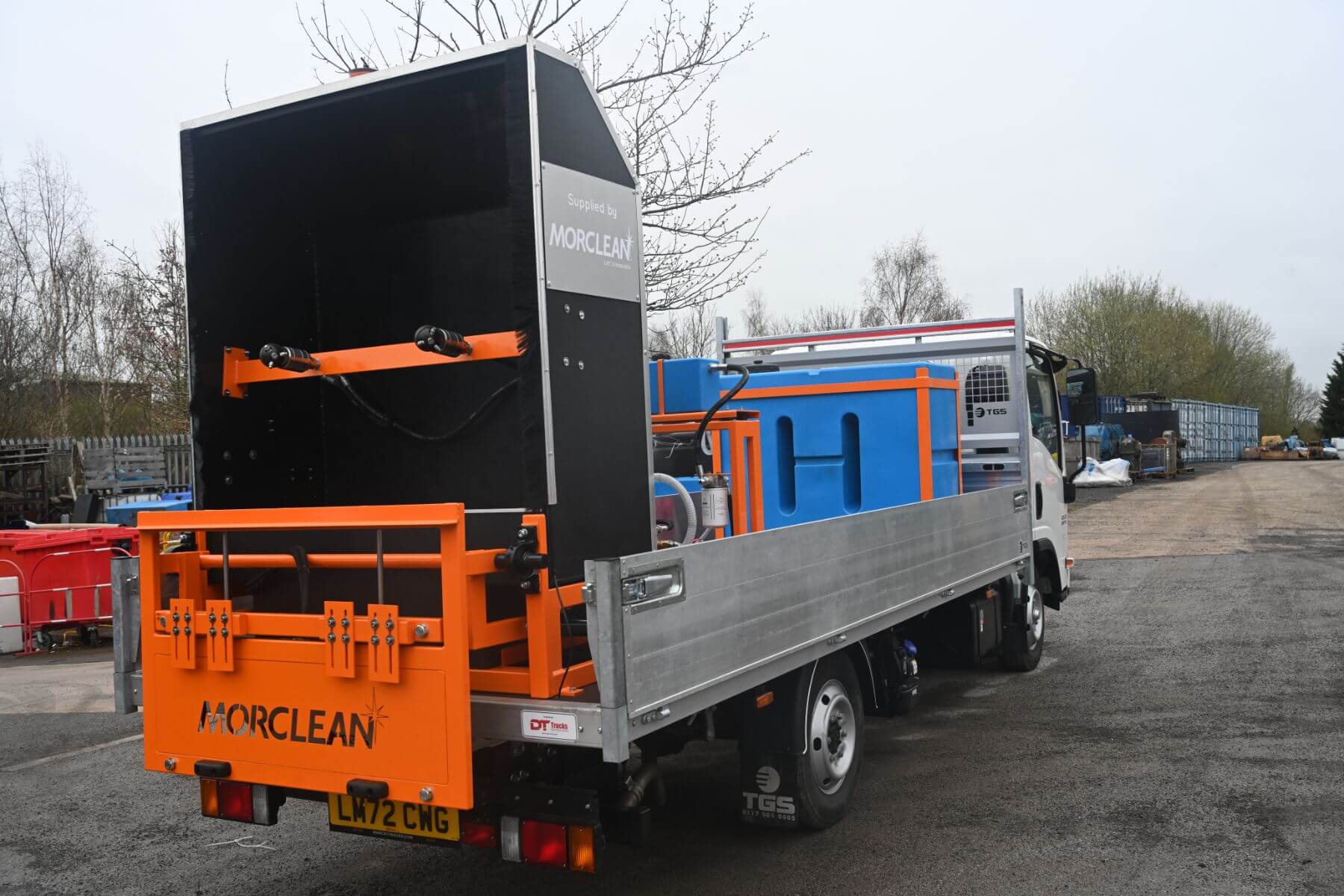

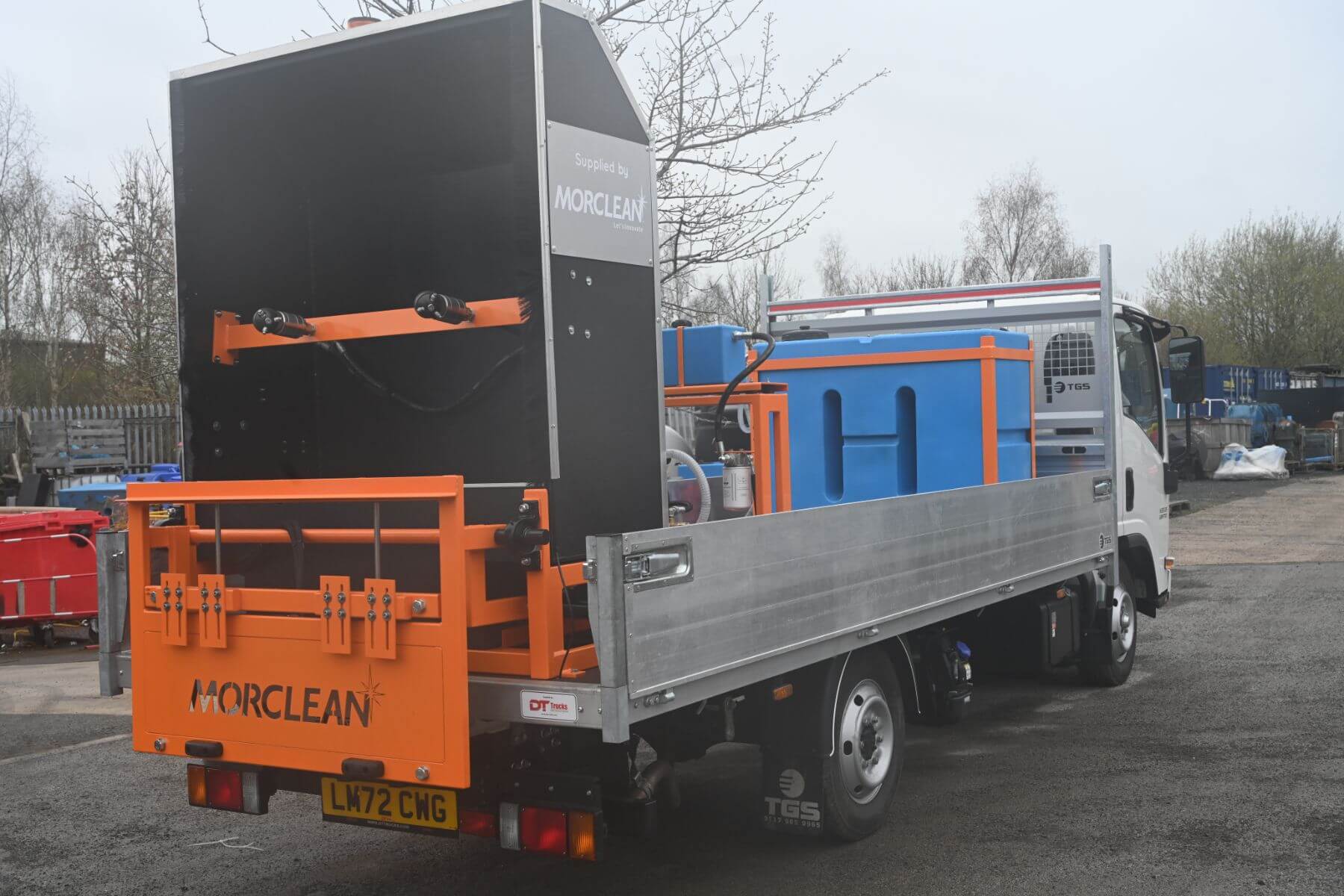

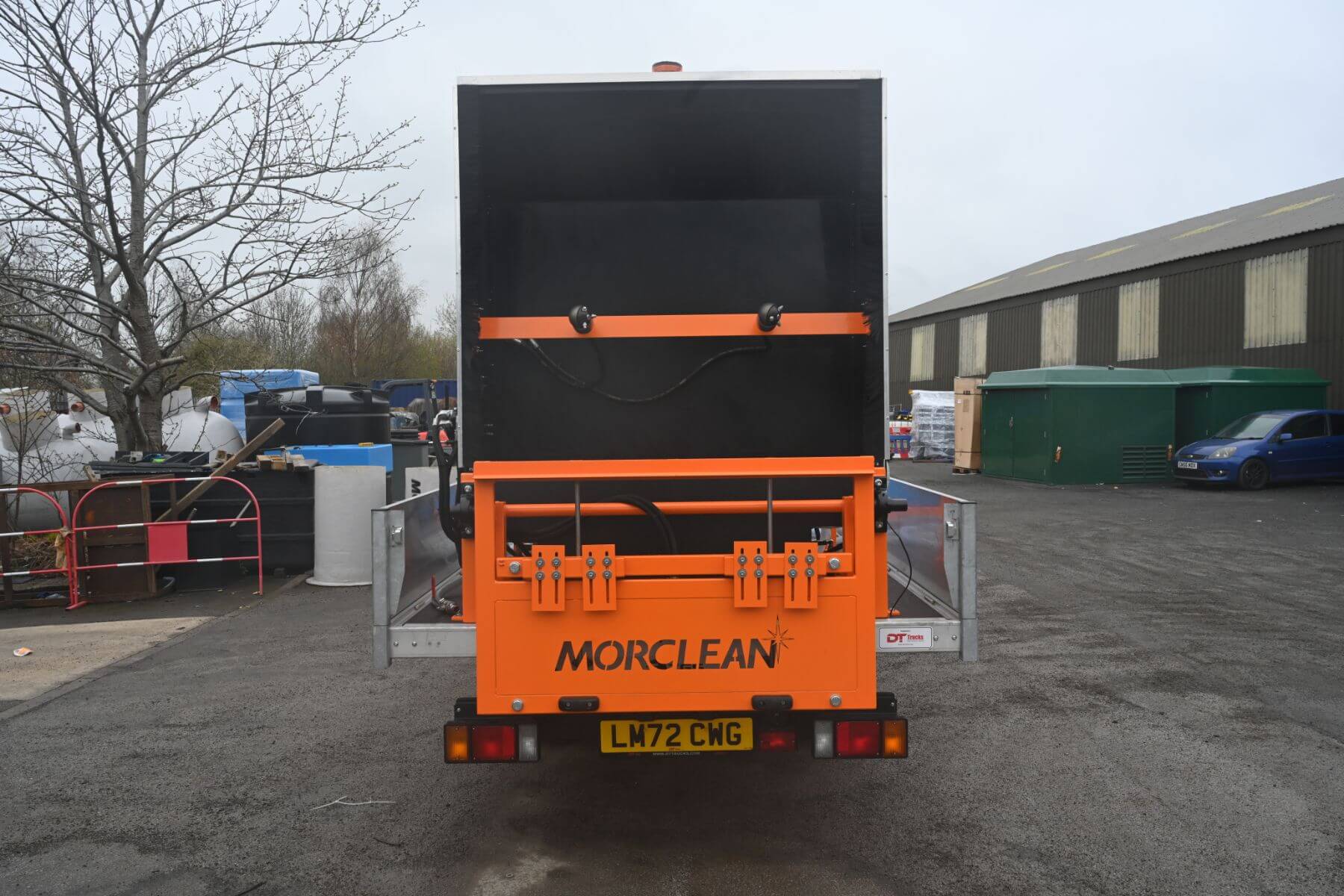

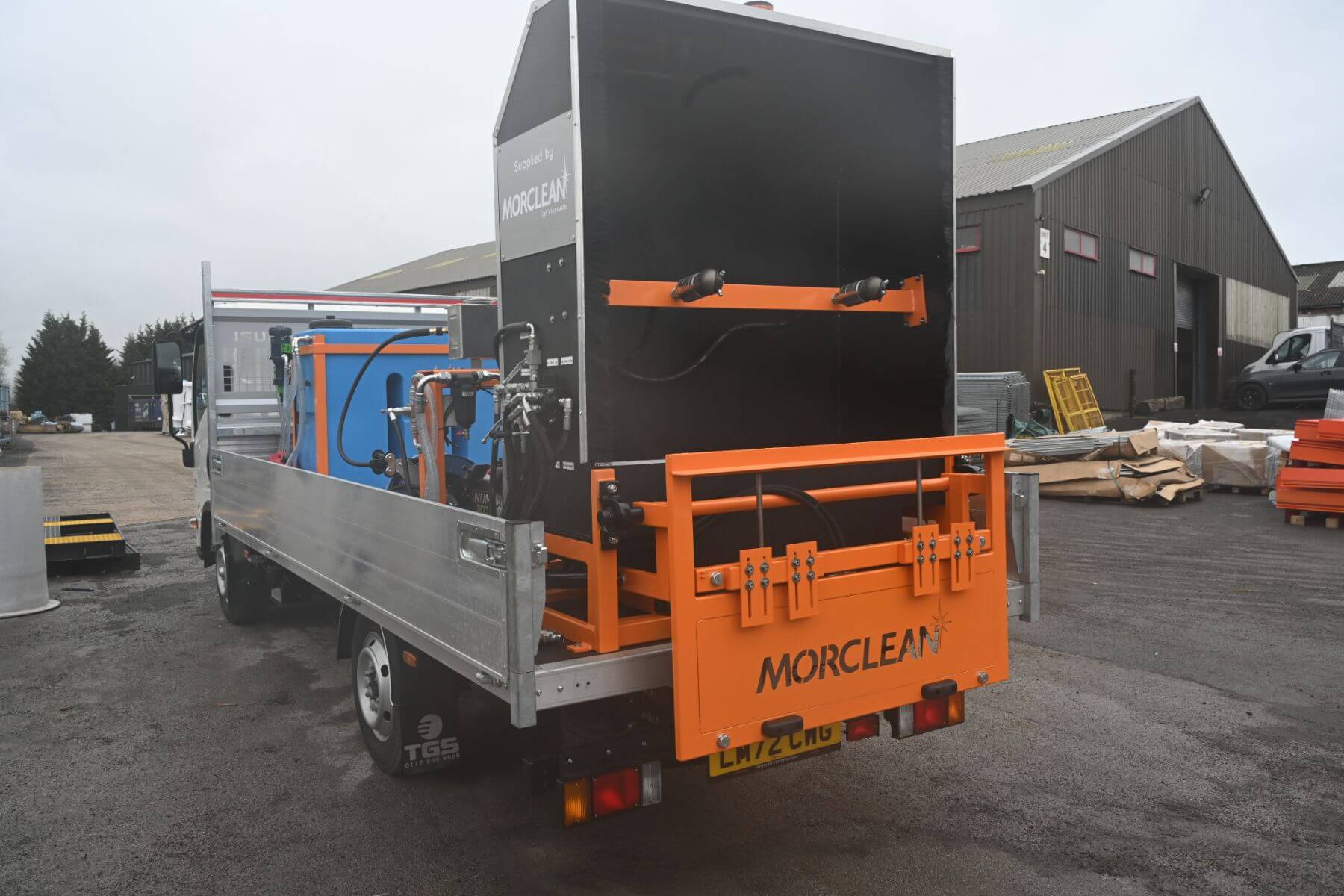

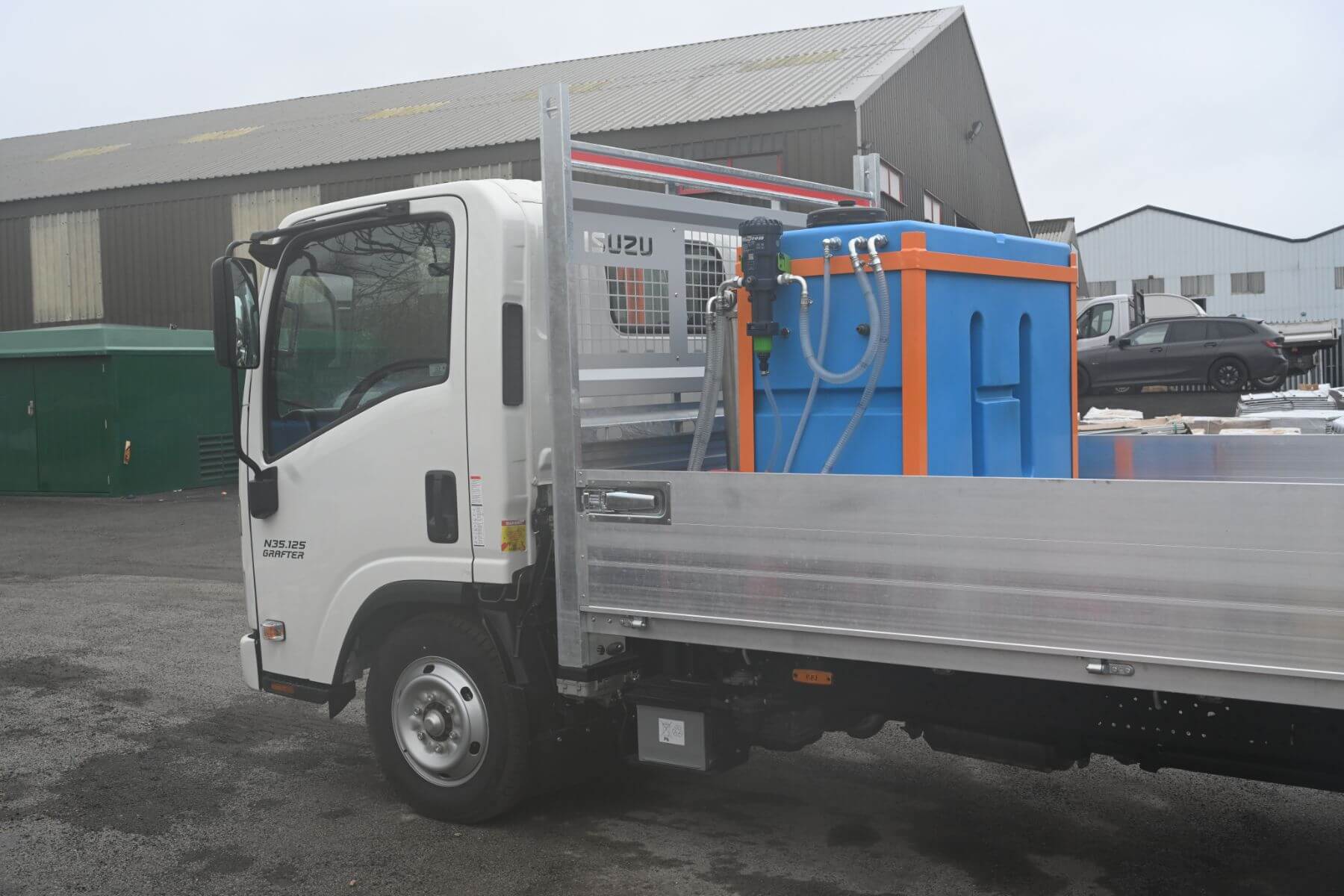

The Bin Wash FLITE from Morclean is a self-contained bin wash machine that uses 2 automated cleaning heads to clean the insides of wheelie bins without the need for manual washing with a lance by the operator. The system can be fitted to most flat bed vans such as a drop side or chassis cab etc.

The FLITE can also be installed on most Pickup trucks or Trailers.

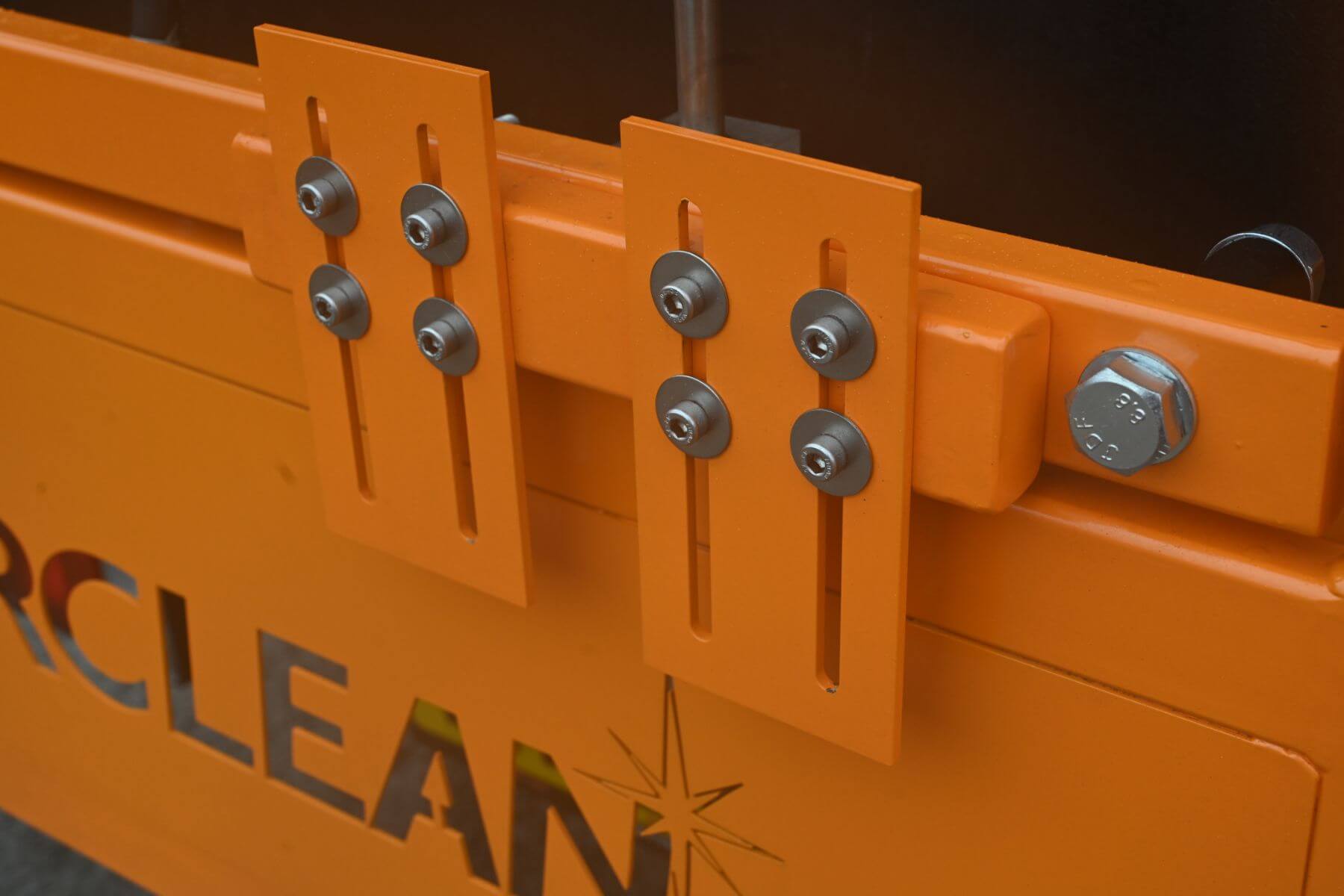

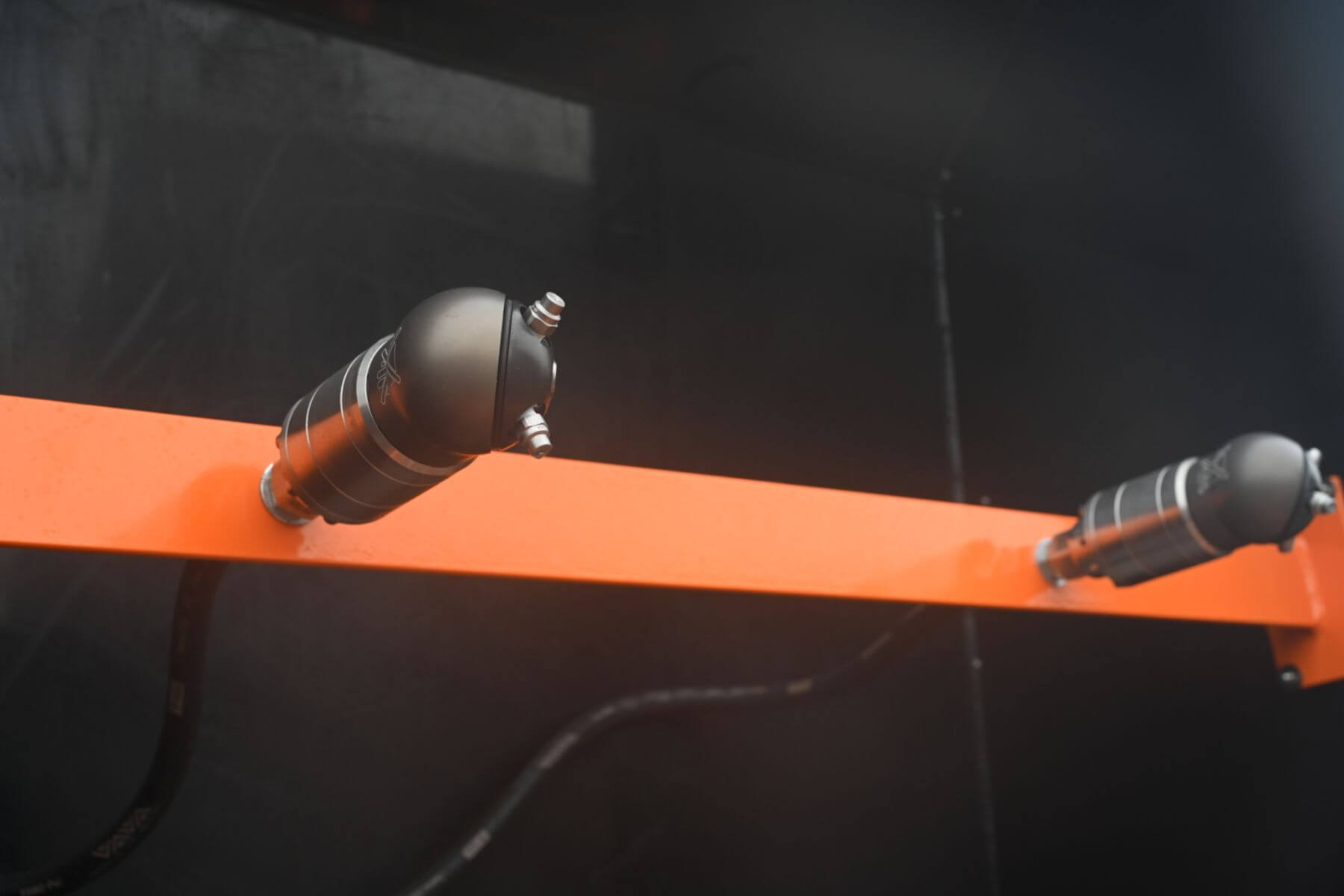

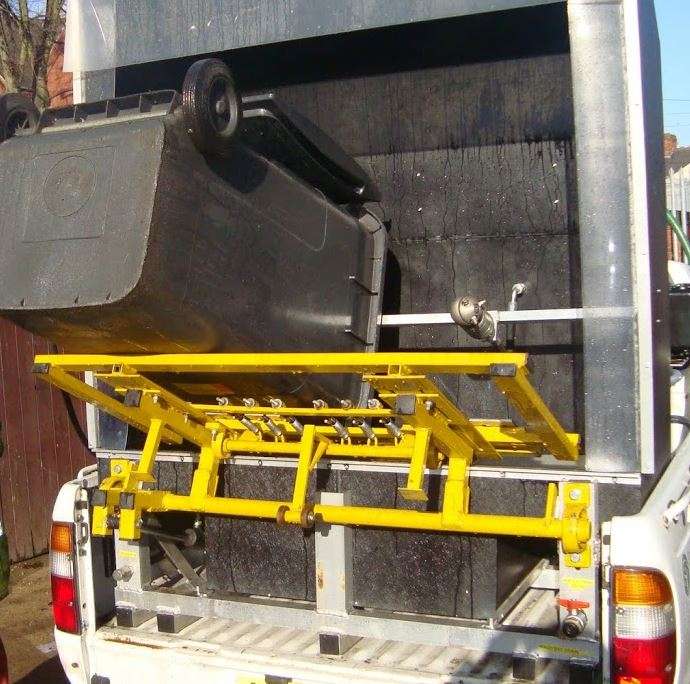

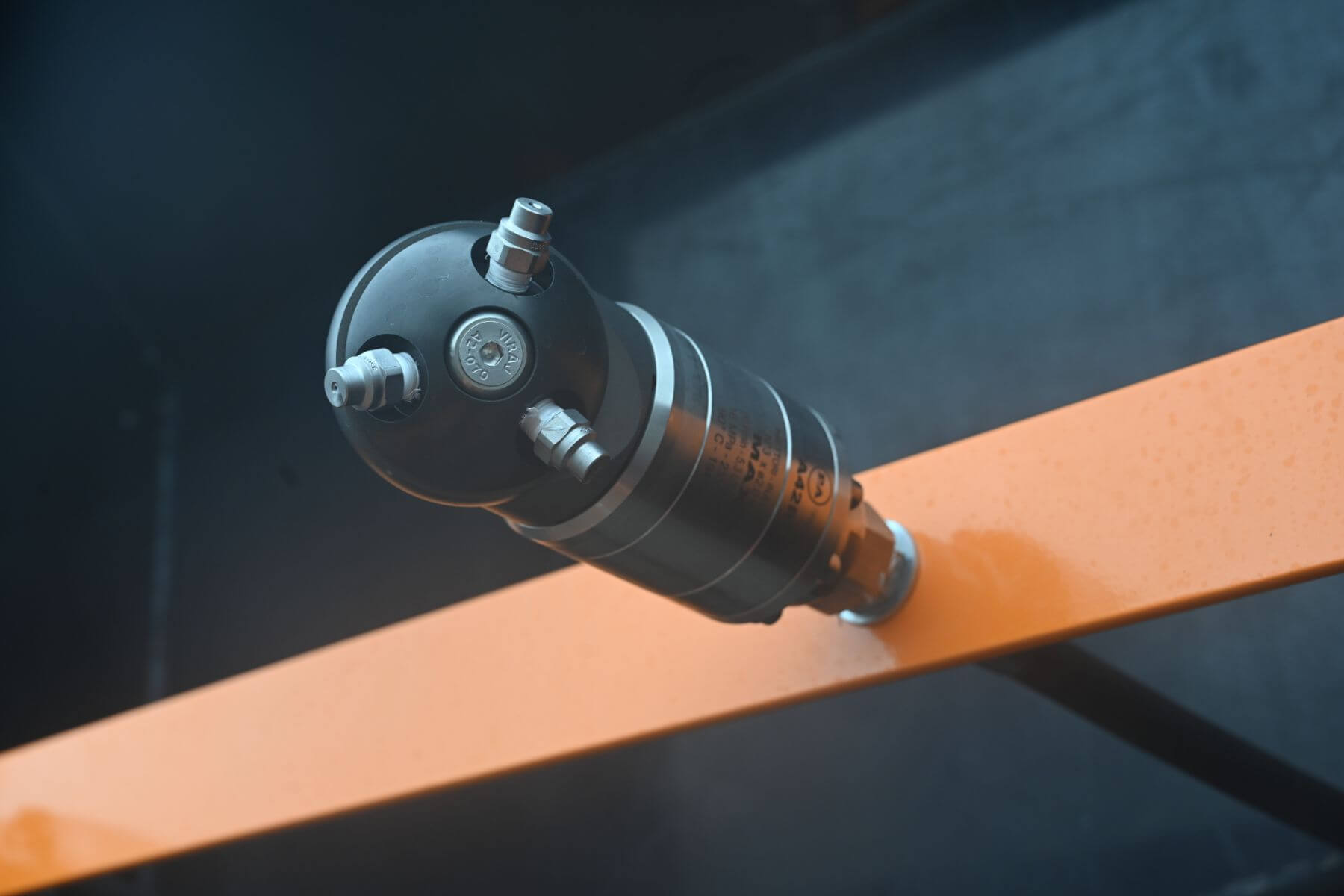

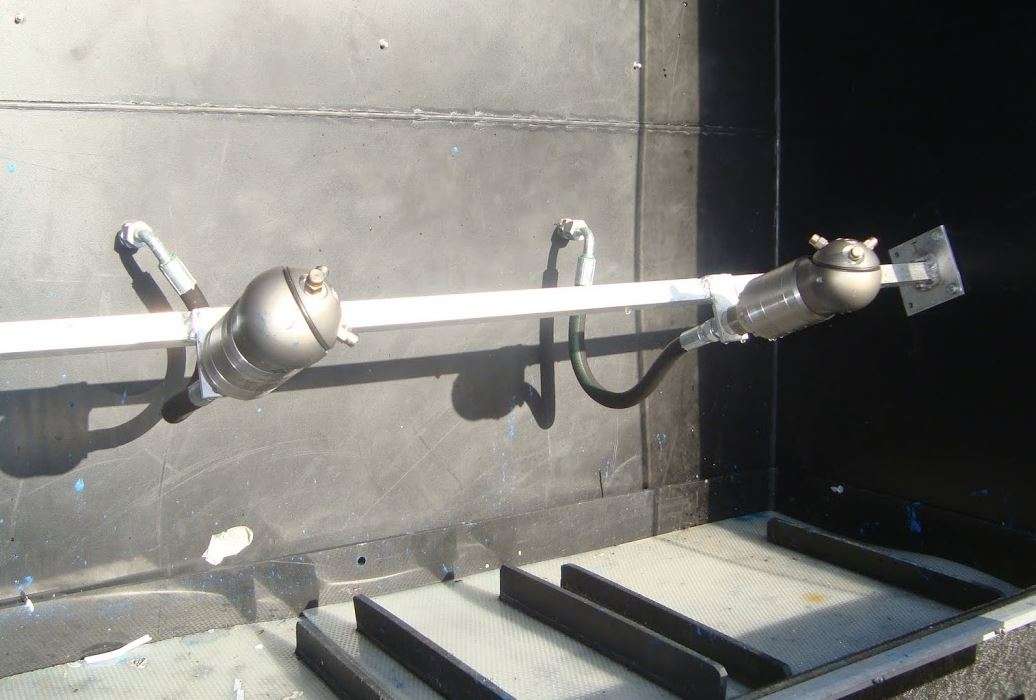

The lift mechanism is manufactured to suit the vehicle height and will lower and raise to suit the bins being lifted before the operator tips the bins with the touch of  a button. Internal washing is carried out automatically by 2 powerful rotating cleaning heads, powered by a diesel engine driven* pump, that turn in two directions to ensure as much of the internal surface as possible is cleaned

*Please note that during 2022/2023,  diesel engines of this type and size are being phased out due to changes in legislation to reduce emissions.  Morclean are aware of all these developments and are continually improving their range of bin wash machines. Currently we are phasing out diesel engines and opting for  petrol driven variants

binwash flite logo self contained automated bin wash machine

Product Features

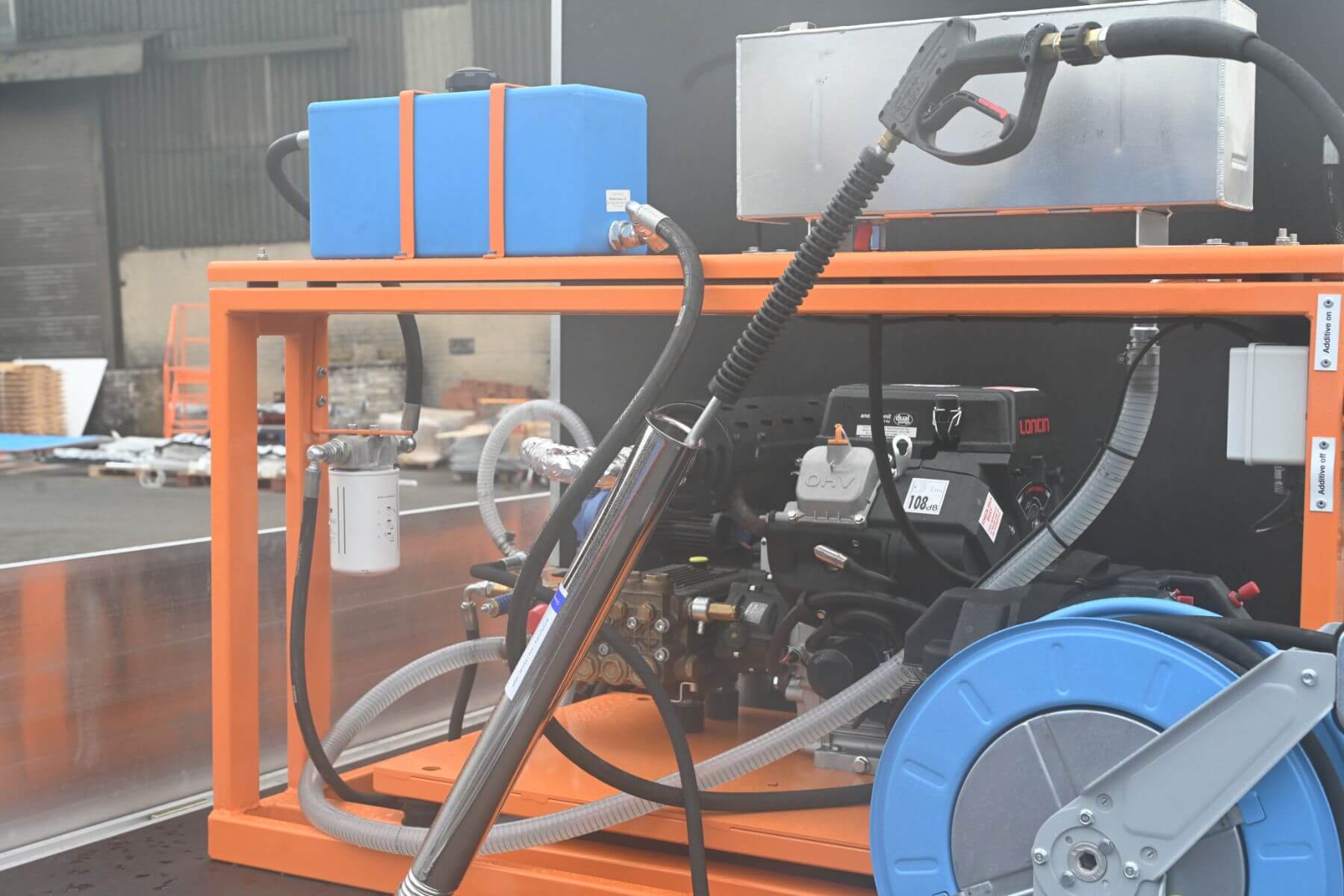

  • Water tank with recycling system

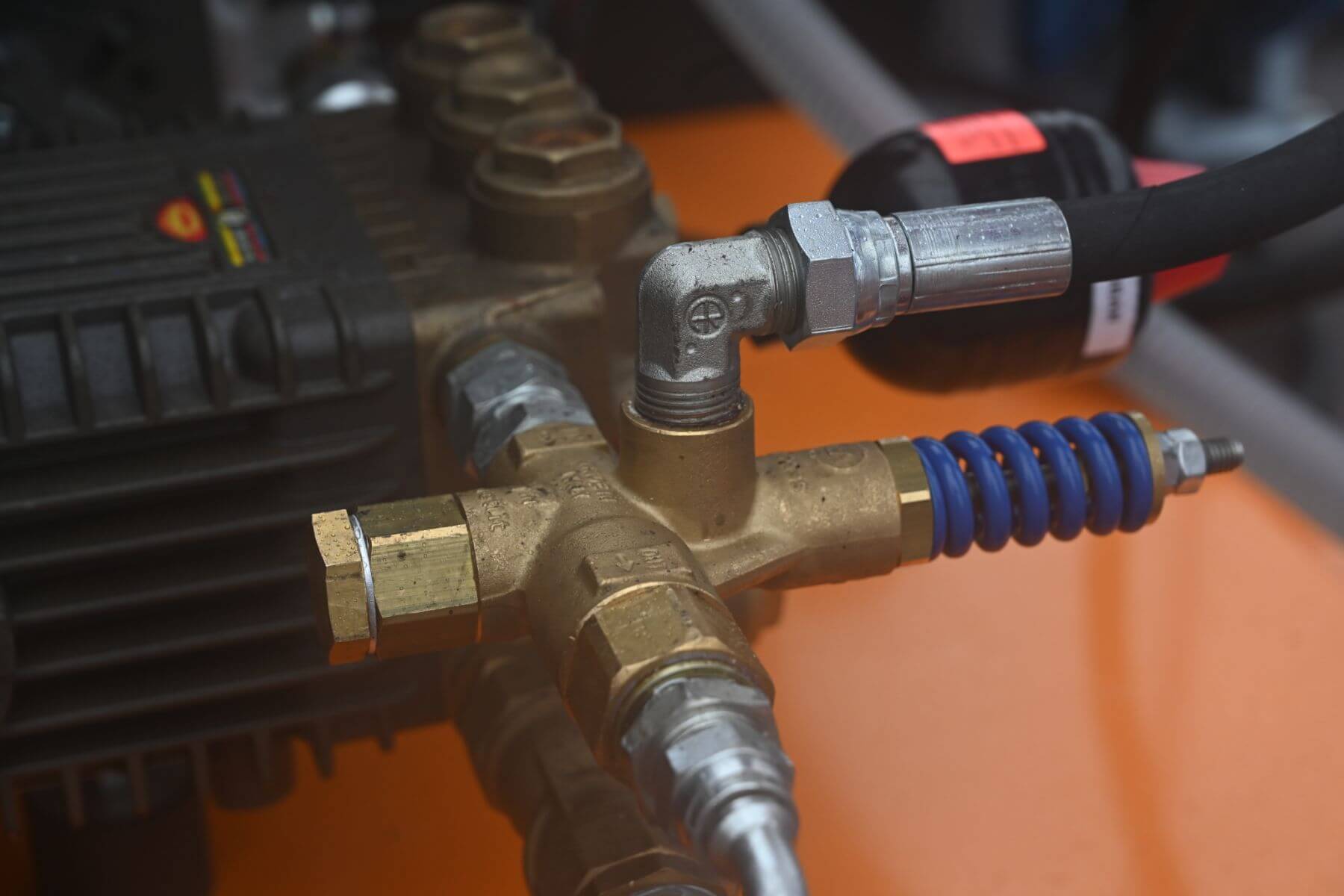

  • Safety relief valve and unloader valve
  • Two AUTOMATED wash heads

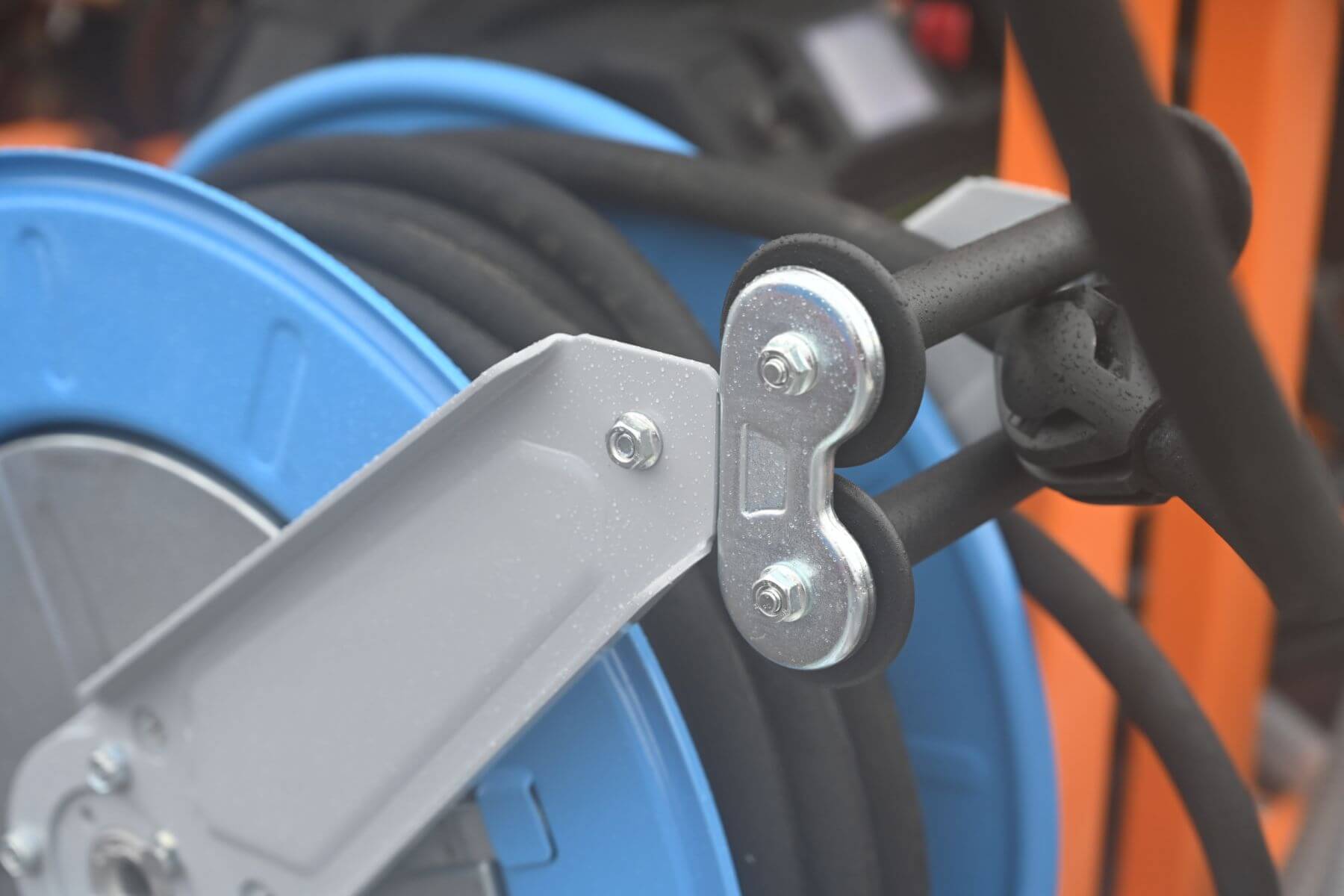

  • One man single lance, option of two available if required
  • 3 stage filtration with easily cleanable filter
  • Easy drain / clean tanks
  • Full water recirculation system
  • Mounted on a custom designed frame to suit your vehicle
  • Can be mounted on a variety of vehicles eg Ford Ranger Mitsubishi Hilux pick-up or similar

Technical Specifications

Item Specification Notes
Power/drive

Lombardini three cylinder water cooled diesel engine with full auto shutdown for oil and water



Electric start
Performance 40 Lpm high pressure water Combined flow
Nozzles 2 x 20 Lpm 360 degree rotary nozzles Per Nozzle
Frame/design Suitable for most 4×4 pick ups Dims required
Pressure 200 Bar At each nozzle

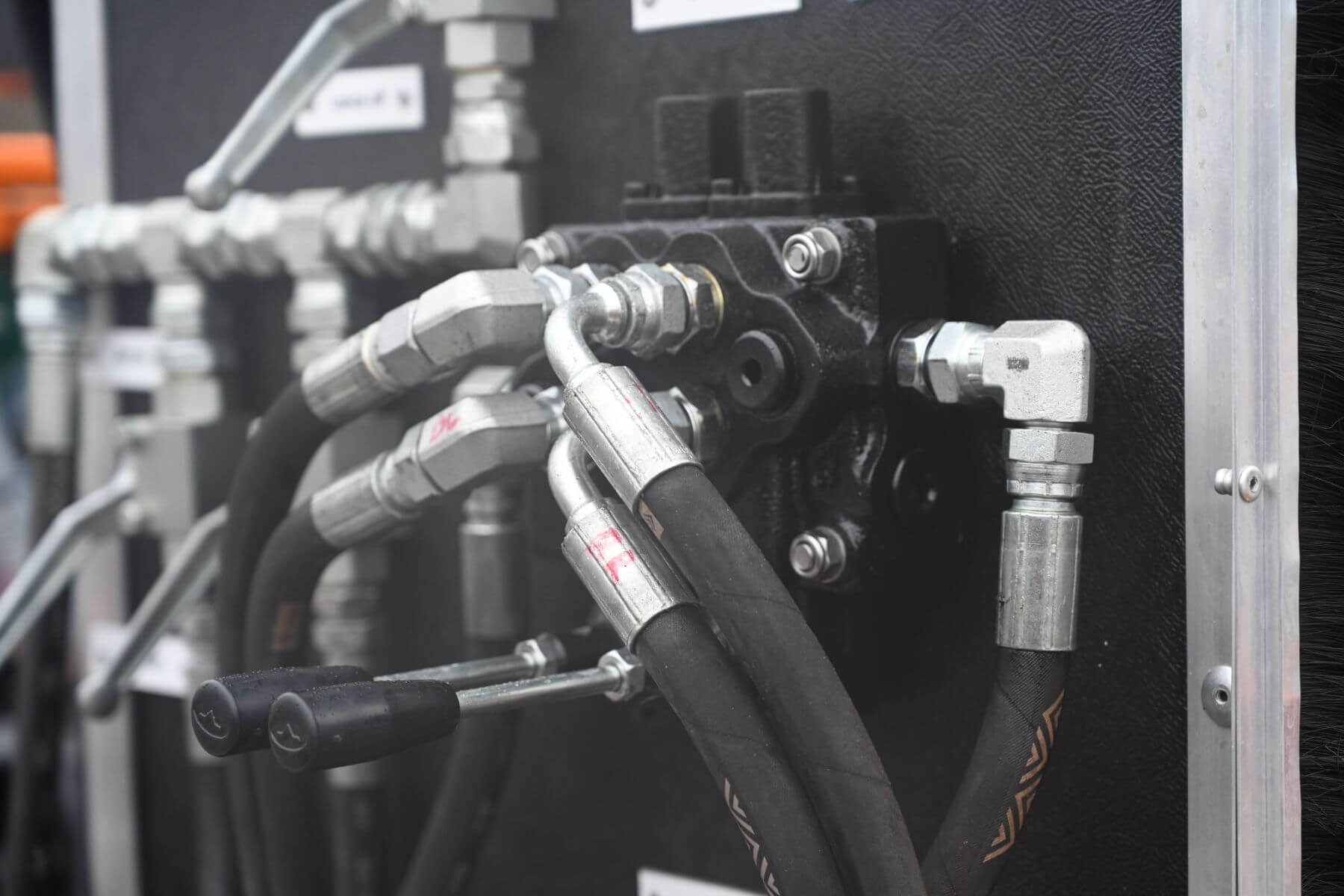

Lift Hydraulic lift & automated 2 domestic or 1 commercial bin

*Please note that during 2022/2023, diesel engines of this type and size are being phased out due to changes in legislation to reduce emissions. Morclean are aware of all these developments and are continually improving their range of bin wash machines. Currently we are phasing out diesel engines and opting for petrol driven variants

Operation

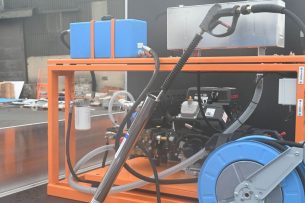

The machine is manufactured with an integral water tank and filtration system, simply use the lift mechanism to lift the bins into place and the automated cleaning heads to the rest. The machine will clean either 2 domestic wheelie bins or 1 large commercial bin at the same time and will fit any UK/EU type bin

Product Development & Design

3d design image of a cleaning head

3d design image of a cleaning head

At Morclean we are continually developing new products and use the latest in 3D rendering software to create concepts prior to prototype and design at our dedicated R&D facility

Images

Due to continual development by vehicle manufacturers, pick-up trucks vary considerably in dimension and size – especially the newer models with rounded corners and improved design. Supply is therefore dependant on specification and dims to suit each vehicle but the Morclean FLITE is built on a standardised frame
