Pumping Station Oil Removal

If the outflow of contaminated water from any process; foul water, surface water or vehicle washing water contains oils, Morclean can limit the outflow of oil whether it is free floating, or, if the oil has become emulsified. The emulsification of oil can be split using the Morclean Dosing System. Also, if the outflow to the drain is higher than the chamber, the water can be pumped to the drain.

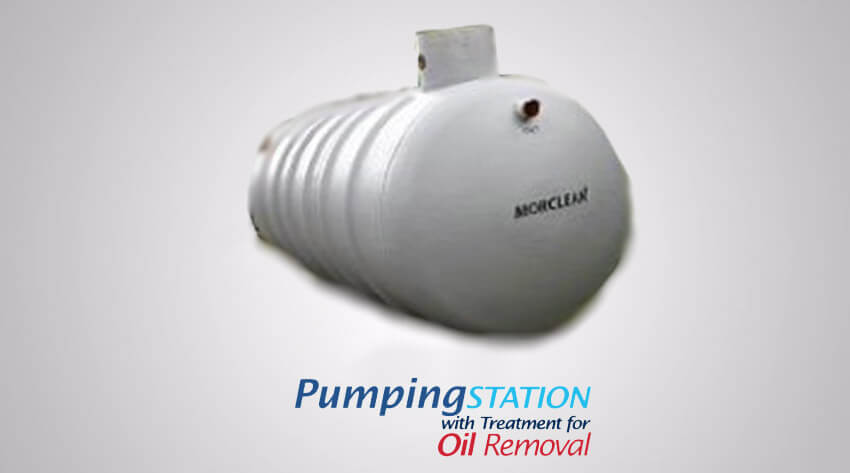

Constructed from GRP, the pumping station and are available from 2000 to 20,000 litre capacity (minimum sizes may be required) or above 20,000 litre as a bespoke item. Our pumping stations all have a 600mm access chamber so that when attached they are neatly concealed under a standard 600mm manway cover and lid.*

Specification and technical details available on request.

*Manway Covers and lids are an added extra as pumping stations are also all available above ground.

interceptors with oil removal

Please note: This item requires frames and manhole covers

The above requires manhole cover(s) and lid(s) (not included). Due to the weights involved covers and lids are expensive to transport and often cost more to ship than they are worth so we advise you source your own. You can purchase covers and lids from most builders merchants and below is a guide to assist you choosing the best type for the duty.

manhole-coversmanhole-coversmanhole-covers







Type Size (mm) Duty European Standard Loading Typical Overground
Class A15 600 x 450 Light BS EN 124 3 tonne (approx) Cars/Small Vans
Class B125 Medium 17 tonne (approx) Cars/Small Commercial
Class D400 Heavy 38 tonne (approx) Large Commercials/HGV

PDF Icon

Pumping Station Oil Removal Specifications

Click the PDF icon to view information Oil Removal Pumping station specifications..

(221Kb)

PDF Icon

Pumping Station Models

Click the PDF icon to view Oil Removal pumping Station models.

(229Kb)

The EA and SEPA Pollution Prevention Guidelines (PPG) which are jointly produced by the Environment Agency for England and Wales, the Scottish Environment Protection Agency, and the Environment and Heritage Service for Northern Ireland (Ref PPG3 / PPG13 / PPG4 / PPG 14) suggest that Class 2 wash bay silt traps and interceptors should be connected only to a mains foul drain, and Class 1 separators to surface drain.

The above assumes you have the consent to connect any outflow to a suitable drain as per the appropriate PPG Guideline. While we always endeavour to provide best advice and accurate information, it the responsibility of the client and/or landowner to comply with the law. Following any guideline doesn’t remove your responsibility to comply with the law and prevent pollution from your activities. Causing or allowing pollution is a criminal offence; compliance with any guidance isn’t a defence. You should make sure that the references to other sources of guidance are still current.

Extract from the Pollution Prevention Guidelines: PPG13

3. Requirements for all vehicle washing and cleaning activities

Activities that produce run-off from the vehicle onto the ground and use cleaning and valeting products should be carried out in areas that are clearly marked and isolated from surface water drainage systems, unmade ground and porous surfaces. These areas are called designated washing bays.

A designated washing bay should be designed so that run-off is:

  • isolated using channels, gullies, gradient (fall on the surface) and kerbs
  • directed to a silt trap or settlement tank to remove larger particles of silt and sediment
  • either collected in a sealed system for reuse, discharged to the public foul sewer with prior permission
  • of the local sewer provider or collected in a sealed system for authorised disposal

You should also:

  • have procedures for everyone, including contractors, that cover where and how vehicle washing and cleaning should be carried out and what to do in a spillage emergency
  • provide notices for designated washing bays saying what they’re for and that washing and cleaning should only be carried out in the bay
  • consider whether a fence or barrier is required to prevent spray or wind drift out of the designated area
  • have procedures and equipment which minimises water use and solid waste production

Extract from the Pollution Prevention Guidelines: PPG3

Closure devices and alarms

Closure devices

If too much oil is allowed to accumulate inside a separator, it will not work effectively and oil will escape. To avoid this, full retention separators must be provided with an automatic closure device that will prevent flow passing through the separator when the quantity of oil in the separator exceeds the oil storage volume (V).

Also, during emptying or maintenance the separator should be isolated to prevent the escape of waste oil. Open all isolation valves when the operation is complete.

Do not fit automatic closure devices to bypass separators unless they have been designed specifically to operate on such separators.

If the automatic closure device is activated the operator should be alerted by a high level alarm so that immediate maintenance can be carried out.

Automatic Warning Devices/Alarm systems

Separators must be provided with a robust device to provide visual and audible warning (if necessary to a remotely located supervisory point) when the level of oil reaches 90 per cent of the oil storage volume (V) under static liquid level conditions. This automatic warning device indicates that the separator is in need of immediate emptying for it to continue to work effectively.

Also, as the build up of silt will prevent the separator from working effectively, we recommend that you install a silt level alarm or another suitable device in your separator to alert you to the build-up of excessive levels of silt. In many cases, oil and silt alarms can be fitted to an existing separator. Silt alarms are most useful on those sites where high volumes of silt are likely to enter the separator, such as quarries, builder’s yards and major trunk roads.

Further equipment can be fitted to the separator, alongside a closure device and warning device, to alert the site operator to the routine maintenance requirements of the separator. This equipment might, for example, indicate when the next inspection is due and such ‘separator management systems’ will ensure that the separator continues to receive the appropriate level of attention.

Any electrical device used within a separator or used to monitor sensors placed within a separator must be intrinsically safe and certified to a suitable explosion protection standard. The location of the monitoring device, such as the alarm or ‘separator management system’ control panel, must be located within a safe area and conform to the requirements of BS EN 60079-10. For this reason it is important to always use qualified technicians who are familiar with the installation, calibration and servicing of intrinsically safe equipment. Regular maintenance and testing of equipment is essential.
