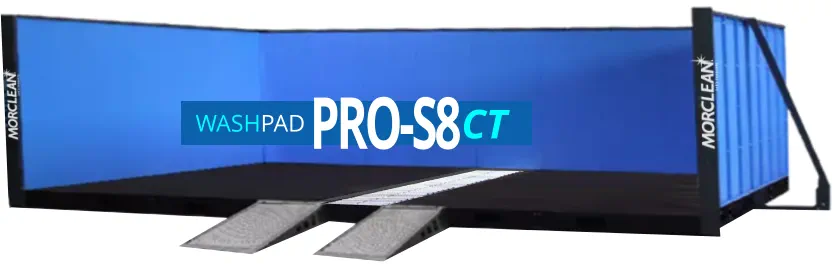

Modular Wash Bay PRO-S8 CT
6750mm by 6000mm wash area
Eight modular base sections.
Central solids collection channel
Three 2.2m walls to curb overspray.
Safe access with two galvanized anti-slip ramps.
Dirty water channelled to the centre for filtering.
Impressive Eco-Friendly, Self-Contained Wash Bay
KEY FEATURES
40m2 Wash Area
The wash area of the Wash Pad Pro-S8 wash bay measures approximately 6750mm in width and 6000mm in depth. It is made up of eight modular base panels, each panel measures 1500mm x 3000mm, with an additional central solids collection channel.
Easy and Safe Entry
Access the wash area safely using two galvanised anti slip ramps. Additional ramps are available as optional extras.
Overspray Protection
2200mm high walls minimise over spraying during the washing operations. The PRO-S8 CT comes with three walls as standard.
Waste Management Efficiency
The wash bay floor is designed to direct soiled liquids and solids to the sides of the wash bay, which are then drained into the solids collection tanks. The three sections within these tanks filter and retain solids while allowing the water to filter through an outlet for filtration.
Optional Automated Filtration
Contaminents can be filtered out utilising a float switch-activated diaphragm pump which transfers water to the WPP30 Filtration Tank. Water is then lightly chlorinated, ready for reuse.
ADVANTAGES
Environmental Compliance
The closed-loop system recycles water, preventing contaminated water from entering the drainage system.
Cost-Efficiency
Reduces water usage, leading to savings on water bills and potential savings on discharge licenses.
Easy to Transport and Assemble
Designed for easy transportation, assembly and disassembly. The modular design allows for greater flexibilty to meet and exceed client’s applications and needs.
Sustainability
Promote eco-friendly practices with the option of recycling 100% of the water.
The WashPad PRO-S8 Wash Bay is a self-contained, environmentally friendly, cleaning system for large plant and construction machinery.
WASHPAD PRO-S6: TECHNICAL SPECIFICATIONS |
|
|---|---|
| Wash Area | 6750mm x 6000mm |
| Total Dimensions | 8334mm x 8750mm |
| Filtration Tank Dimensions | 3647mm x 1006mm x 2160mm(H) |
| Max Load Capacity | 5950Kg |
| Wall Height | 2200mm |
| Total Dry Weight | 4370Kg |
| Optional Diaphragm Pump | 0.59kW – 180L/minute |
| Optional Booster Pump | 0.37kW – 5 to 40L/minute |
| Optional Filtering System | WPP30 |
