Modular Wash Bay PRO-S6
6000mm width by 4500mm depth wash area
Six modular base sections
Three 2.2m walls to minimise overspray
Two galvanized anti-slip ramps provide safe access
Reduce water usage with the WPP30 filtration system
Where Sustainability Meets Affordability
KEY FEATURES
Large Size
The wash area of the X-6 wash bay measures approximately 6000mm in width and 4500mm in depth. It is made up of six modular base panels, each sized 1500mm x 3000mm.
Accessible Entry
The wash area is safely accessible via two galvanised anti slip ramps as standard. Additional ramps are available as options.
Overspray Protection
Three-sided walls standing at 2200mm high walls minimize overspray during the washing operations.
Efficient Waste Management
The floor of the wash bay is designed to direct soiled water and solids to the sides which then drains into the solids collection tanks. Inside these tanks are three sections that filter and retain solids while allowing the water to filter through an outlet for filtration.
Automated Filtration
A float switch-activated diaphragm pump transfers water to the WPP30 Filtration Tank, where contaminants are filtered out, and the water is lightly chlorinated for reuse.
ADVANTAGES
Environmental Compliance
The closed-loop system recycles water, preventing contaminated runoff, aiding compliance with environmental regulations.
Cost-Efficiency
Reduces water usage, leading to savings on water bills and potential savings on discharge licenses.
Easy to Transport and Assemble
Designed for easy transportation, assembly and disassembly. The modular design allows for greater flexibilty to meet and exceed client’s applications and needs.
Sustainability
Recycle 100% of the water used in the cleaning process with the WPP30 filtration tank.

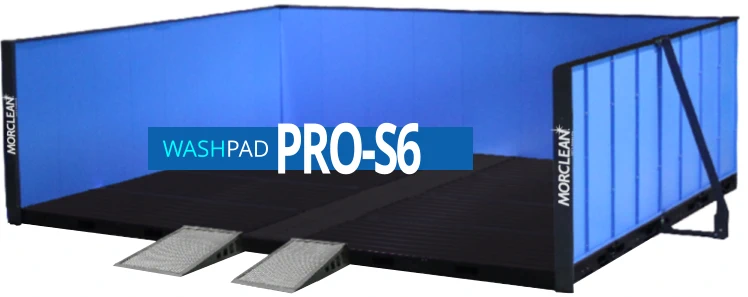

The WashPad PRO-S6 Wash Bay is a self-contained, environmentally friendly, cleaning system for construction plant and equipment.
WASHPAD PRO-S6: TECHNICAL SPECIFICATIONS |
|
|---|---|
| Wash Area | 6000mm x 4500mm |
| Total Dimensions | 7170mm x 5750mm |
| Filtration Tank Dimensions | 3647mm x 1006mm x 2160mm(H) |
| Max Load Capacity | 5000Kg |
| Wall Height | 2200mm |
| Total Dry Weight | 3440Kg |
| Diaphragm Pump | 0.59kW – 180L/minute |
| Booster Pump | 0.37kW – 5 to 40L/minute |
| Filtering System | WPP30 |
