The Importance of Recycling Water

Water recycling equipment are part of an expanding market due to the savings water recycling can offer in the present climate of water privatisation, stricter effluent discharge consents, and rising effluent charges. The drought of 1989 serves to remind us of the importance of water recycling as vehicle wash operators were driven to a standstill due to water authorities banning the use of water for the washing of vehicles.

Emphasis has been placed on a more compact design, with lower running costs and lower capital costs, to make water recycling equipment even more cost-effective and sustainable to the customer.

Morclean’s Water Recycling Systems

The Water Technology List logo

We are registered on the Water Technology List

Morclean Aqua

Morclean Aqua water recycling system

Morclean Aqua Benefits:

  • Continue washing during water shortages
  • Which protects site income and car wash
  • And increases water cost reduction
  • Reducing water consumption and pollution helps the environment
  • The spotless rinse system reduces spotting and streaking
  • Water storage tanks included
  • 20mm water supply is no problem

Morclean Aqua Features:

Morclean Aqua will work with a moving gantry or a conveyor wash using hot and cold wax, shampoo and rinse aid.

Morclean Aqua is manufactured in grade 304 stainless steel and, for external siting, is available with a weather proof canope with heaters for frost.



PDF Icon

Morclean Aqua water recycling system
Aqua Specifications (349Kb)

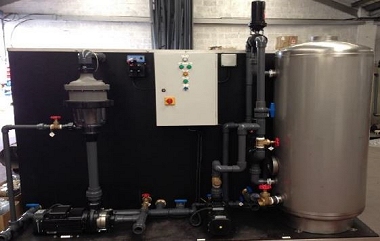

Morclean Hydra

Morclean Hydra

Morclean Hydra Benefits:

  • Continue washing during water shortages
  • Which protects site income and car wash
  • And increases water cost reduction
  • Reducing water consumption and pollution helps the environment
  • The spotless rinse system reduces spotting and streaking
  • Water storage tanks included
  • 20mm water supply is no problem



Morclean Hydra Features:

The Morclean Hydra model required is dicated by the water usage of the wash machine in gallons (or litres) per minute. A rollover wash machine using a total of 32 gallons per minute would need a Hydra 35 to match this usage.

The tanks are fabricated in either polypropylene or stainless steel grade 304D. They are skid mounted with a base plate to form a compact
unit of either open construction, or they can be supplied fully enclosed with doors.



PDF Icon

Morclean Hydra water recycling system
Hydra Specifications (332Kb)

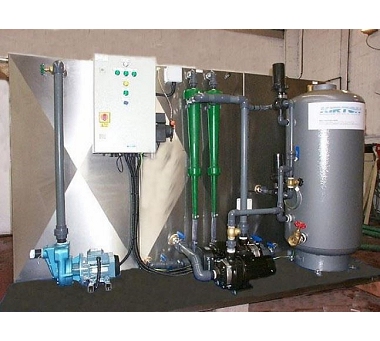

Morclean Astra

Morclean Astra Water Recycle unit

Astra Benefits:

  • Option to fully enclose
  • Keeping your civil costs to a minimum
  • Low capital and maintenance costs
  • The system is transportable
  • Full/Partial reclaim options

Astra Features:

Fabricated in stainless steel grade 304D, frost protection is available.
Astra is designed to operate with commercial or forecourt brush machines using hot and cold waxes, shampoos and rinses. Note: Chemicals must be approved prior for compatibility.
The treatment plant consists of split stainless steel tanks mounted with a common base plate. The plant utilises activated carbon filtration with option of spotless rinse and electro flocculation, and multi-cyclone solids separation.

PDF Icon

Morclean Astra water recycling system
Astra Specifications (347Kb)

Morclean Compact

Jet Wash Water Recycling System
Morclean's Compact Recycle Unit

Compact Benefits:

  • Cost-effective savings
  • Reduces pollution
  • Lowering maintenance costs
  • Complies with environmental agency requirements
  • Can permit washing during shortage of water

Compact Features:

The Compact water recycling system is fabricated in stainless steel grade 304D. The Compact is also available in a fully enclosed version with security and frost protection.
The Morclean Compact is suitable for all jet and pressure systems. The systems consist of pre-filters, storage tank and booster pump,
and an internal GAC filter/absorption bed. All controls are rated to IP55 and the system can be fully enclosed if required.

PDF Icon

Morclean Compact water recycling system
Compact Specifications (338Kb)

Morclean Prime

Jet Wash Water Recycling System
Prime Benefits:
Available in Embossed Polyethylene tank or Stainless
Low amp usage: 10amps/2 ½ kilowatts
Measures only 1200 x 1200mm
Can be used with all makes of pressure washers

Prime Features:
The Morclean Prime is suitable for all jet and pressure wash systems. The system consists of pre-filters, an internal GAC filter/absorption bed, sand filter, storage tank, water rinse and booster pump.
The system can be fully enclosed if required and all controls are rated to IP55.
Construction:
The jet wash water recycling system can be fabricated in hot wire welded embossed
polyethylene or stainless steel grade 304D.

Morclean Prime water recycling system
Prime Specifications (327Kb)

Call Back Request

Name (*)
Email (*)
Tel No. (*)
Location (*)
How may we help?

Subscribe to our mailing list

* Required field

Click below to view our full product guide. (opens in a new window)

iso9001

Morclean’s quality administration systems have been assured and approved to the standards and guidelines of BS EN ISO 9000:2000 for the sales, service and hire of industrial cleaning equipment.

Our registration no. is 94/121120 and our standards and guidelines are externally audited by CIS.

ISO 9001 registered

Need Interceptor & Water Reclaim?

Freephone: 0800 1300 402

Morclean supply Interceptors and Water Reclaim Systems

Call Morclean Today!

Freephone: 0800 1300 402

For professional advice, effective assistance and competitive prices

  • Please note that many models described on this website are bespoke, and as such cannot always be accurately depicted.
  • All photographs and illustrations displayed on this website are representative of model ranges or a model series only. Individual models and specifications may vary from those shown.
  • Please contact us if you require clarification or individual specifications of any equipment. Morclean reserve the right to update and amend the specification of our equipment and accessories without notice and in the interest of the customer.
  • Images or specifications must not be reproduced with express written consent from Morclean Ltd.
  • Any prices quoted are subject to VAT @ SR. E &OE

Further Water Reclaim Information

Water Technology List

The Government’s Water Technology List (WTL) promotes products that encourage sustainable water use and rewards businesses for investing in them through the Enhanced Capital Allowance (ECA) scheme. The ECA allows a business to offset the cost of purchasing eligible plant and machinery against its taxable profits.

Features

The Morclean Screen Wash System units are typically a ‘combined reclaim system’. The system can typically be used in conjunction with commercial or forecourt brush and jet wash machines, or in conjunction with a Morclean Screen Wash System, Gantry Wash System or Wheel Wash System unit. The plant generally consists of stainless steel tanks mounted to a common base plate

Technical

The plant utilises either hydro cyclone solids separation, electro-flocculation, activated carbon filtration or spotless rinse. Fabrication is in stainless steel grade 304D and is available fully enclosed with frost protection.

Operation

Water used during vehicle washing etc is typically collected in either a sump or is collected via a pump out of the silt trap. This water is then pumped into stage one of the system and three stages of settlement. Afterwards the water is then ‘Hydrocycloned’ to remove finer solids and is now partially ready for recycling. This water can then also be ‘electro-flocculated’ to break down waxes etc (when full reclaim water is required)

Finally water is filtered through activated carbon to remove residual organics such as shampoo etc prior to recycle as rinse water, and pumped back into the system for use.

Options

The Water Recycling System can be used in conjunction with most Morclean Systems including Screen Wash Systems, Gantry Wash Systems and Wheel Wash Systems. Morclean would be pleased to liaise with end users, Design or Consulting Engineers, and Civil Engineers with any project
