Surface Mounted Vehicle Wash Pads

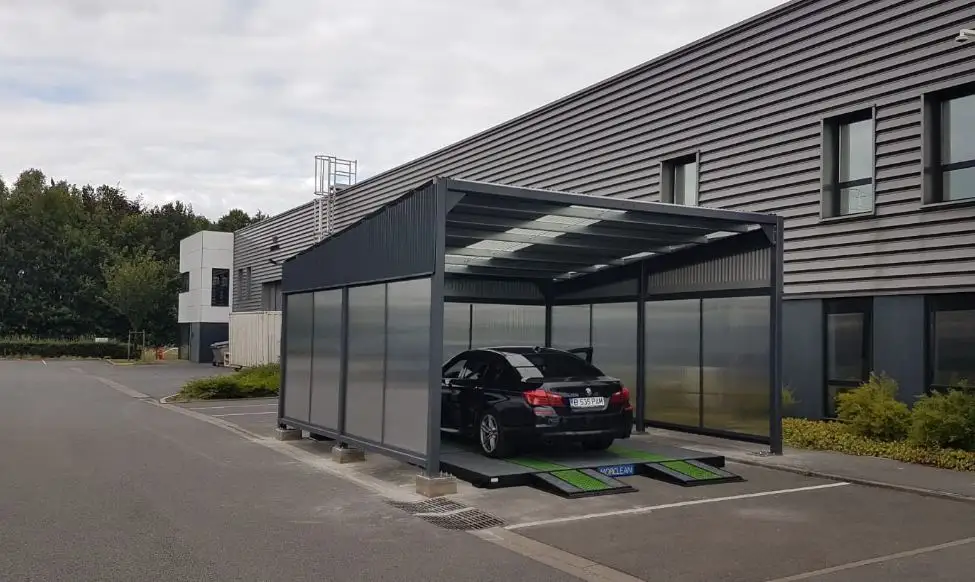

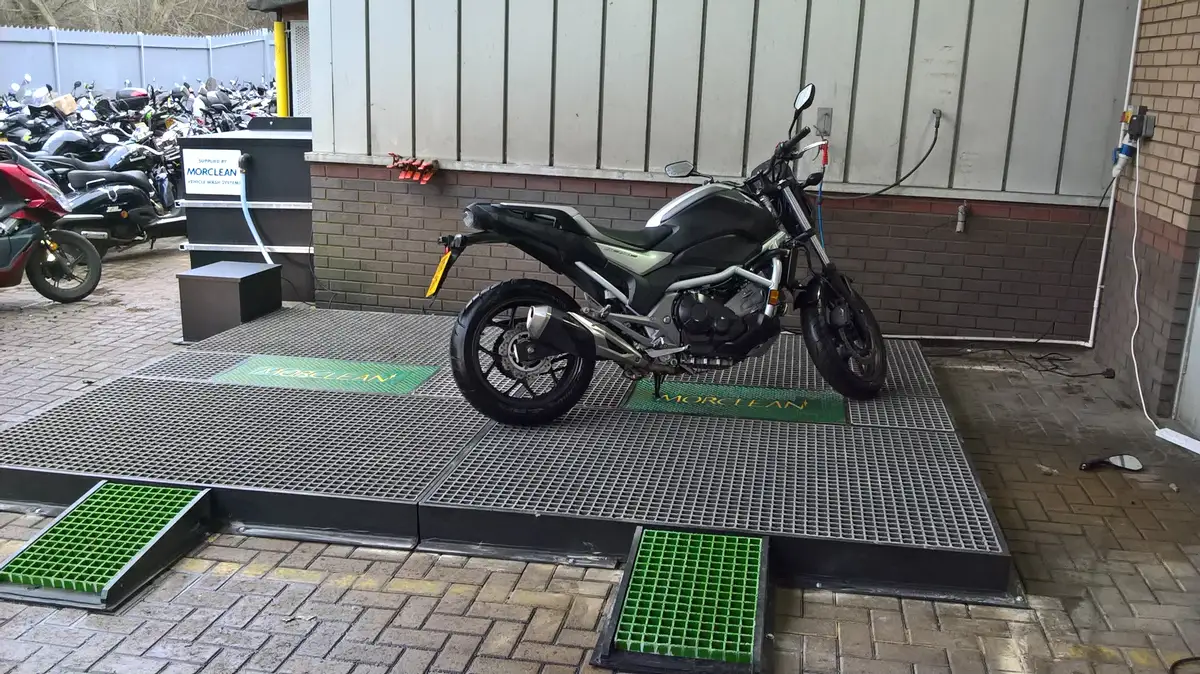

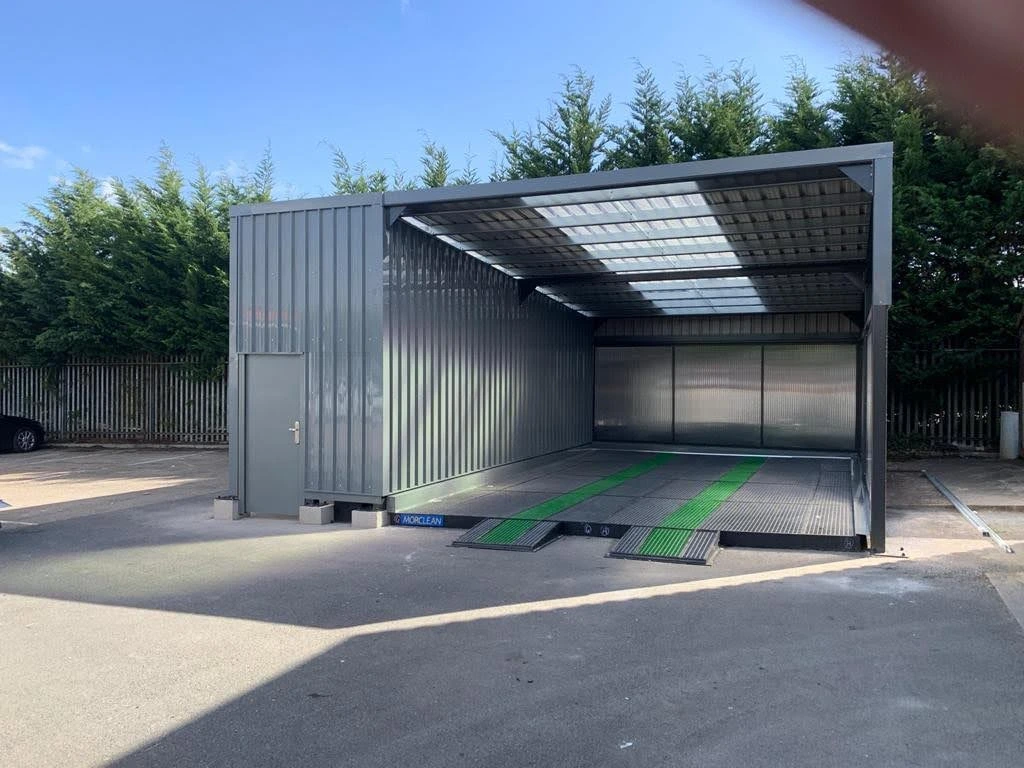

Surface Mounted Vehicle Wash Pads from Morclean are CE marked and satisfy current legislation for the containment and disposal of water, but also eradicates the need for any excavation or below ground installations; which can be costly, time-consuming and sometimes impossible!

The Surface Mounted Vehicle Wash Pads are typically used in heavy-duty environments for longer periods, or where there is a need to wash higher volumes of vehicles. This is ideal for leasehold or sensitive sites such as a multi-storey car park where groundworks are not practical.

The Surface Mounted Wash Pads avoid excavation and civil works, meaning virtually zero disturbance to the ground. Our experienced team can generally install a wash pad within hours, with minimal fuss or inconvenience.

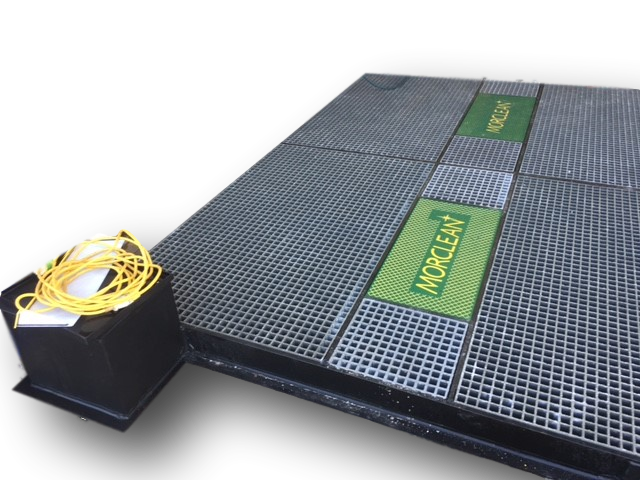

The external gratings are easily removed for cleaning and maintenance, and the Morclean wash bay is manufactured at just 100mm height to prevent accidental damage should the vehicle not enter or exit using the provided ramps.

Water Treatment & Reclaim

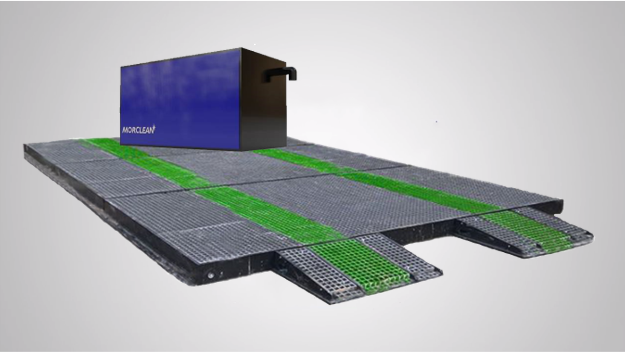

The Wash Pad captures all the water into a drain and a surface mounted sump pump which can be discharged to foul, partially treated via a Morclean BlueBox or GreyBox, or pumped to a water reclaim system.

This innovative product can also be used in conjunction with the Morclean Pump Station which is a surface mounted device housed in a kiosk that collects water from the outlet of the wash pad and then pumps it to the drain.

How it works is the Surface Mounted Vehicle Wash Pad captures all the water into a drain and a surface mounted sump pump which can be discharged to foul, partially treated via a Morclean BlueBox or GreyBox, or pumped to a water reclaim system.

Supplied with a drain to one end of the pad as standard or can be supplied as a complete watertight retainer.

Bespoke Designs

Surface Mounted Vehicle Wash Pads are available in 5x3M and 6x4M as standard, however, Morclean offer a bespoke design and build option, to have your Wash Pad created to your exact requirements.

The Wash Pad comes as standard in grey and green.

Vehicle Wash Pad Specification

Item Specification
Permitted Weight Specifically designed to support the weight of the heaviest vehicle or item of plant on the fleet
Designed Weight Designed to support a max permitted Kg over a determined mm of span and/or the required Kg/m2
Capacity A determined mm to the required span for the throughput of vehicles and the Kg/m2
Colour Grey & Green

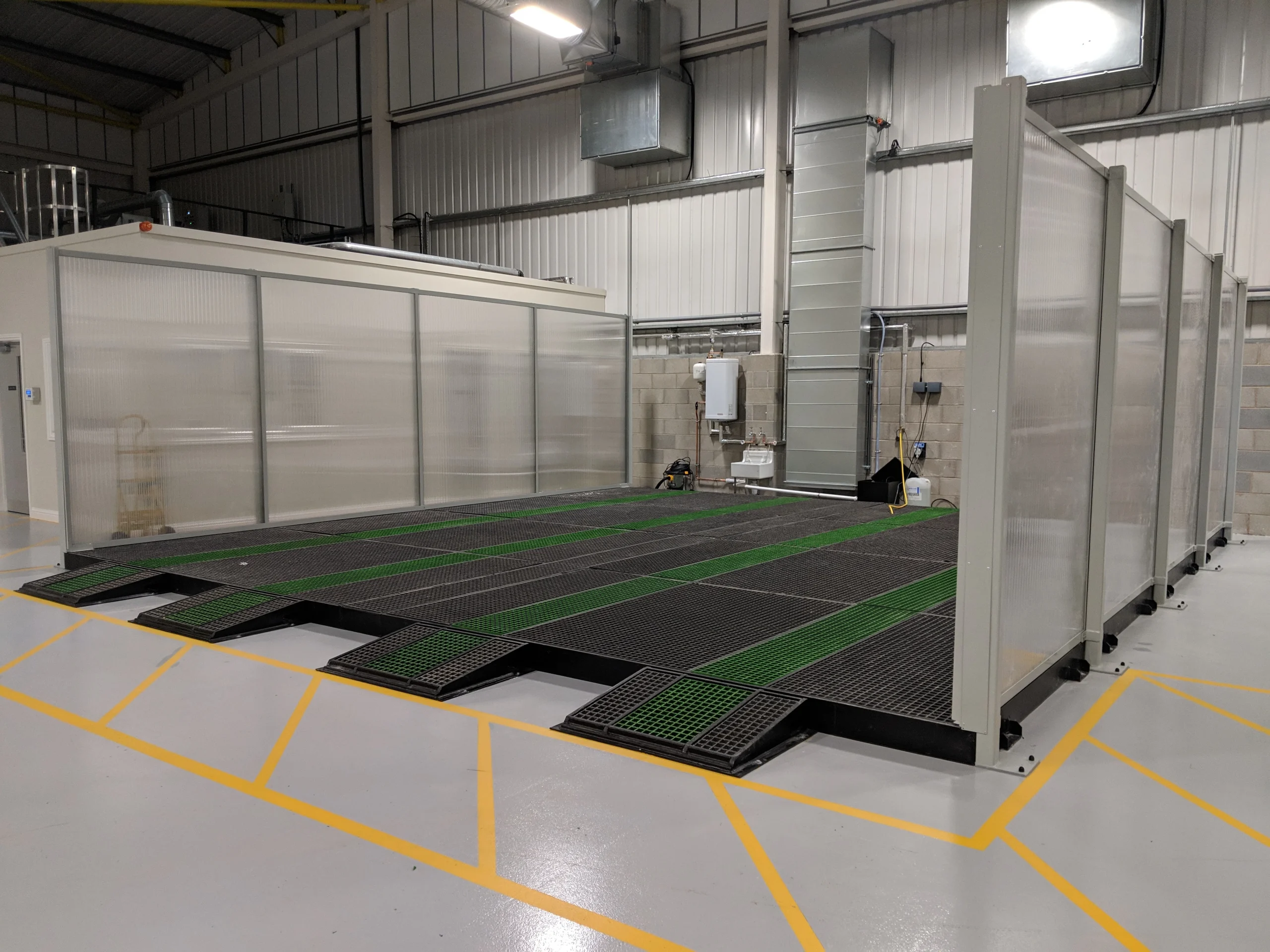

Feature Fibreglass gratings to make a solid liquid containment tray generally 5m x 3M or 6M x 4M
(other sizes available)
Maintenance All gratings removable for ease of servicing maintenance and cleaning
External Fitted with low profile external raised kerb approx. 100mm high (to prevent accidental damage if vehicles drive off the ramps)
Overall Dimension 5M x 3M or 6M x 4M Standard
(other sizes available/as requested)


General Surface Mounted Vehicle Wash Pads Operation

The rigid permanent mat is positioned after delivery and installed with suitable fast fix bolts to fix to the floor (Morclean provide delivery installation and transportation using their internal transport).

If using a drain and pump the site does not require any excavation and Morclean can supply all items to be surface mounted.

Then simply drive the vehicle on to the wash pad and you have a fully fitted wash pad at a fraction of the cost, disturbance and time. We can design and manufacture to any practical size.

The wash platform will not be damaged by the weight of the vehicle it is designed for. This is a tested product that has taken several years to develop.

Quality Control for Water Tightness and Safety Notes

Although innovative and easy to operate the wash pads are more than just a simple construction. All wash pads have to be fully tested and we guarantee water-tightness of the floor. All welded joints and connections are vacuum tested and inspected during a quality procedure. Every wash pad is given a unique registration number to ensure the identification of all the products used during construction.
