MV 20-50 WD

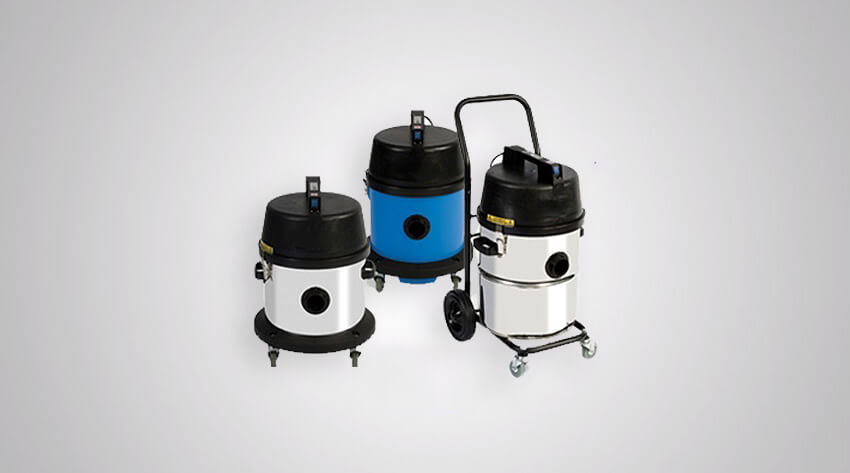

The Morclean range of Wet and Dry pick up Vacuum Cleaners are built without compromise to offer years of reliable service. This versatile range of industrial wet and dry vacuum cleaners will happily take on the toughest jobs. There is a model in this range perfectly suited to your requirement. With the choice of dent proof injection moulded or non-magnetic stainless steel canister, four castor chassis or heavy duty tubular caddy and a choice of single or double motors on all sizes of canister. The MV 50 features the extra advantage of pivoting tip action water emptying into a drain or WC. Machines available with a single or twin motor.

Morclean are committed to supplying the correct machine to provide a long and cost effective service life. All units are supplied with on site operator training and a range of accessories to suit your particular requirements.

Product Features:

  • Twin fan bypass cooling motor
  • One or two motors
  • Thermal switch protection against overheating
  • Virtually indestructible thick section injection moulded plastic motor had
  • Efficient float ball wet shut off
  • Net filter to float cage to prevent motor damage
  • Two stage dry filtration – Disposable paper bag/filter and cloth filter
  • Optional high efficiency cloth filter
  • MV 30, 45 & 50 can be fitted with our bolt on fixed floor tool
  • Hose entry will accept 32, 38 & 51mm hose and tool kits
  • MV 30 & 45 can be fitted with dump valve or drain hose and stopper for quicker wet emptying
  • Antistatic hose entry and 38mm conductive tool kit to dissipate build up of nuisance static.

Technical Specification

MV 20 - 50 Wet and Dry

Motor:

1000w Max, 800w Mean or Twin Motor 2000w Max 1600w Mean

Power:

230/110v – 50/60Hz

Performance:

Single Motor – Max Airflow – 43.5Ltr/Sec Twin Motor Max Airflow – 82Ltr/Sec

Capacity Wet / Dry Litres:

MV 20 14/20L / MV 25 18/23L / MV 30 24/30L / MV 45 34/40L / MV 50 34/40L

Dimensions (H x W x D) mm

MV 20 610x440x440 / MV 25 625x440x440 / MV 30 865x450x460
MV 45 865x450x460 / MV 50 920x520x560

Weight (Kg) Single/Twin

MV 20 3.5/16.25 / MV 25 12.5/15.25 /MV 30 16.8/19.7
MV 45 17.8/20.7 MV 50 19/22

Cleaning Range:

28.5 Metres / 94 Feet

Max Vacuum single & twin motors 2200mm
