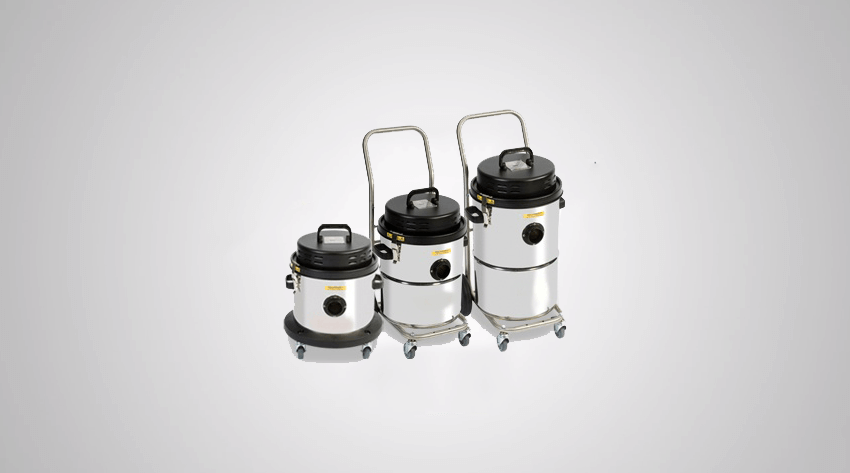

MAV 20-45 W/D
This Morclean range wet and dry ATEX vacuums are suitable for picking up health endangering dust and debris in dust zone 21 & gas zone 1. All of our models are supplied on a stainless steel caddy with braked castors and conductive wheels where applicable and all models are fully earth bonded and have an anti-static (conductive) vacuum and air supply hose. Every vacuum cleaner is individually tested and provided with its own test certificate for earth path continuity. All units are supplied with a complete conductive accessory kit.
Available in 18L, 20L, 30L, & 45L.
• Easy to use
• Accessible for service
• optimal suction power
• Robust Chassis
• Drain hose
• Large real wheels and rotating front wheels
• Storage for accessories and cables
• For wet or dry vacuum application.
Technical Specifications Filtration:
1st Stage Disposable Micro-Fibre Bag
2nd Stage Anti-Static (Conductive) Cloth Filter
Wet and Dry Models are supplied with a ball type float shut-off assembly
MAV 18 and MAV 20 – 4 x 75mm Heavy Duty Castors
2 x 200mm Wheels on a Heavy Duty Tubular Stainless Steel Caddy. Canister detatchable from Caddy.
Dimensions (mm) Height x Width x Depth:
MAV 18 – 895 x 410 x 420
MAV 20 – 525 x 440 x 440
MAV 30 – 895 x 460 x 500
MAV 45 – 895 x 460 x 500
Cleaning range from Air Point:
16 Metres/52 Feet
MAV 18 – 11.5
MAV 20 – 9.00
MAV 30 – 14.5
MAV 45 – 15.9
All models are supplied with a certificate of earth path continuity, a 5 metre conductive air supply hose, a 38mm conductive hose and toolkit. All models are also supplied with 5 disposable micro-fibre bags.
Note: It is the end user’s responsibility to ensure and maintain a good earth bond at the compressed air connection point.
MAV 18 to 30 ; 45 – 2 x 75mm Heavy Duty Castors
PDF Available Soon
