Airtech 1 & Airtech 2

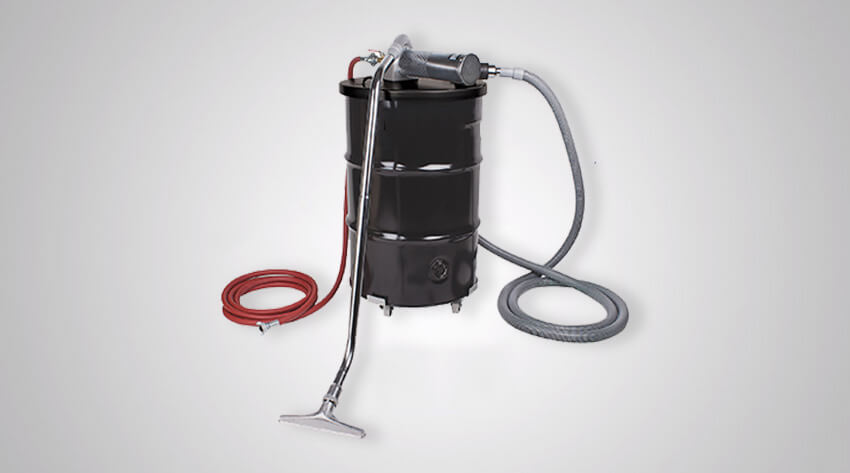

The Air-tech is a supercharged air operated industrial vacuum cleaner for use on wet or dry materials. Available in single venturi and twin venturi and also an ATEX rated model, the high capacity Air-tech is fully operated via an air supply attached to the top of the vacuum meaning no electricity is required unlike normal vacuum cleaners.
Product Features
- Works from plant air supply
- Low maintenance
- Low life time costs
- Syphons up to 45 gallon fluid in 24 seconds
- Develops vacuum up to 3 times greater than normal industrial vacuums
- Capable of removing oil, sludge, swarf, food, slag, sand, turnings
- Also available in twin venturi for extra power
- Choice of 38/51mm accessory kits
Technical Specifications
Air Tech 1 & 2
| Vacuum | up to 17″ Hg |
| Flow Rate | up to 45 gallons in 24 sec |
| Lift | up to 6M |
| Dims | 1110mm(h) x 740mm(W) x 600mm(d) |
| Weight | Unloaded 54Kg / 57Kg |
| Capacity | 205 Litres |
| Compressed air inlet | 3/4 BSP female valve or 3/4 for tree tail |
| Castors | 100mm |
Technical Specifications
Air Tech 1 & 2
| Air-Tech/1 | Air – Tech / 2 |
| 100Psi – 100cfm | 100Psi – 200cfm |
| 80Psi – 80cfm | 800Psi – 160cfm |
| 60Psi – 60cfm | 60Psi – 120cfm |
| 40Psi – 40cfm | 40Psi – 80cfm |
PDF Available Soon
