ATEX Specification Requirements
When specifying a pressure washer for use within an ATEX or zoned hazardous area, it is important to establish the exact requirements of the zone before a machine can be specified.
Due to the wide variety of sites, processes and operations carried out within ATEX-zoned areas, the required equipment specification can vary significantly from one application to another.
Establishing the ATEX Zone Rating
The first requirement is to establish the exact Zone rating for the area in which the pressure washer will be used. We may require additional information before we can prepare a proposal, including the required T class and any other classifications that apply to the area.
The risk assessment used to determine the required Zone rating for equipment entering a zoned area should be carried out by the client or end user. It is the responsibility of the client or end user to specify exactly what equipment is permitted to enter and operate within the zoned area.
The examples shown are not intended to suggest that any particular rating is suitable for your application.
The required ATEX rating must be specified by the client or end user based on the site’s risk assessment and zoning requirements.
Every project is tailored to suit the site, operational requirements and environmental obligations.
CALL 01246 471147

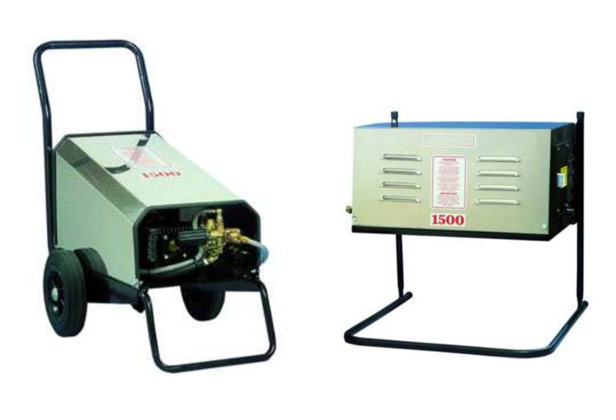

ATEX standard Pressure Washers
Our ATEX standard Pressure Washers of II 2G D IIB T4 Zone 1 ATEX very often cover most of the requirements on site, or can be modified to meet the client’s requirements. It is the obligation of the client / end user to specify exactly what does or doesn’t enter the Zoned area
Morclean provide this range of standard build Zone 1 hot and cold pressure washers, please contact us for more information.
Our range of standard models include
Hot or cold water models
Assembled tested and certified to ATEX regulations
Electric heating with a high pressure boiler to ATEX regulations
Continuous water heating and direct connection to water supply
Auto stop, complete with hose gun and lance, options for powder coated or stainless steel construction
II 2G D IIB T4 Zone 1 ATEX
Electric Heated

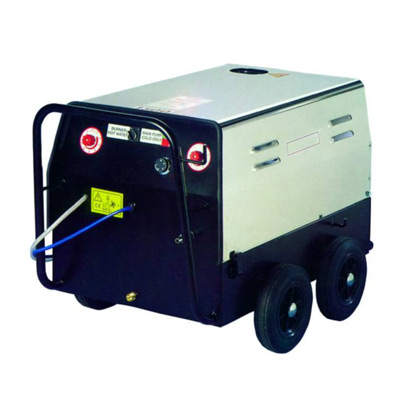

Electric Heated Mobile Hot Water Pressure Washer
Maximum Pressure 100 – 200Bar.
Flow rate of between 12 and 21 litres per minute.
110, 240 or 415 volts.
Dimensions are 760mm high, 740mm wide, 1040mm long.
Weight 150-200Kg.

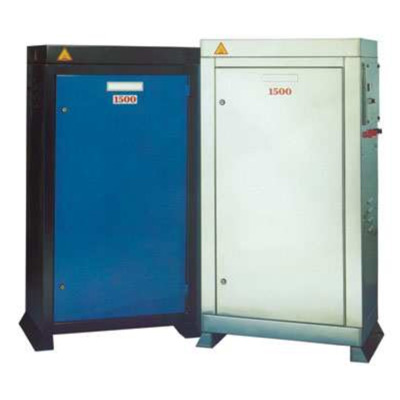

Hot Water Heated Pressure Washers for use on a variety of sites. This machine is a stationary unit.
Maximum Pressure 100 – 200Bar.
Flow rate of between 12 and 21 litres per minute.
110, 240 or 415 volts.
Dimensions are 1590mm high, 840mm wide, 580mm deep.
Weight 200-230Kg.
Cold Water

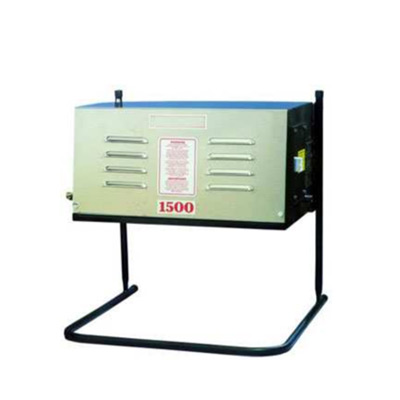

Cold Water Stationary ATEX approved Pressure Washer
Maximum Pressure 100 – 200Bar.
Flow rate of between 12 and 21 litres per minute.
110, 240 or 415 volts.
Dimensions are 16″” high, 29″ wide, 20″ deep.
Weight 70Kg.

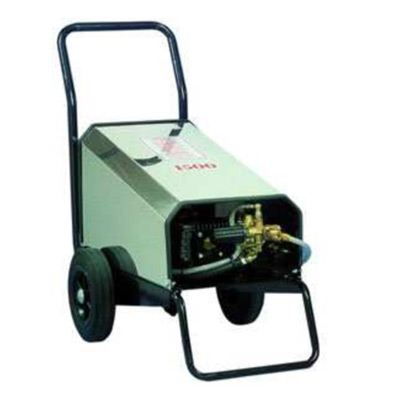

A cold water mobile ATEX approved Pressure Washer
Maximum Pressure 100 – 200Bar
Flow rate of between 12 and 21 litres per minute
110, 240 or 415 volts
Dimensions are 35″ high, 20″ wide, 36″ deep
Weight 60Kg
Special Build
In order to provide a proposal and quotation for an ATEX high pressure cleaner we would require its exact ATEX zone rating from the client due to the diversity and individual requirements on your site.
The following examples are case studies of machines built for use typically in off shore, oil platforms or marine applications.
Case Study 1 – Production Area
Cold water static pressure washer with the performance of 70 bar at 21 litres per minute, 415v 50Hz.
Complies with the following regulations: Zone 1 ATEX CE Ex II 2G EEx IIB T4
Case Study 2 – Offshore
Cold water mobile pressure washer with the performance of 100 bar at 13 litres per minute, 380v 3 Phase 50Hz.
Complies with the following regulations: ATEX Zone 1 EEXD Gas Groups IIA/IIB Temp Class T4 (EEXD IIB T4 CE EX II 2G)
Case Study 3 – Oil Platform
Electrically heated zone 1 pressure cleaner with the performance of 200 bar at 15 litres per minute, 600v 3 Phase 60Hz. It heats its water up to a temperature of 80ºC.
Complies with the following regulations: ATEX Zone 1 EEXD Gas Groups IIA/IIB Temp Class T4 (EEXD IIB T4 CE EX II 2G)
Case Study 4 – Teleplatform Wash for major airline
Cold water cabinet, skid mounted pressure washer with the performance of 100 bar at 14 litres per minute, 415v.
Complies with the following regulations: ATEX Zone 1 EEXD Gas Groups IIA/IIB Temp Class T4 (EEXD IIB T4 CE EX II 2G EX’D’ IIC I4 Zone 1)
