Cleaning Cars and Light Commercials

Brush Wash Drive Through Car Wash

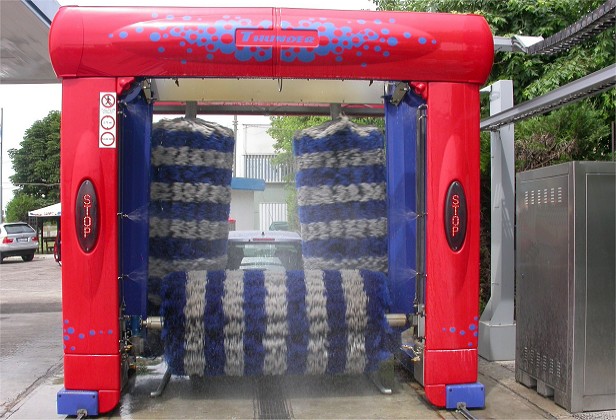

3 Brush Drive Through Wash

The Drive Through Car Wash (3 brush) system from Morclean is the ideal solution for cleaning cars and light commercials, as it is designed around your fleet.

Industrial Car Wash

This vehicle cleaning system incorporates four, very important, points: versatility, reliability, strength and simplicity. It meets all the requirements of an industrial car wash by utilising automatic rollover brushes and recycling technology.

Hydraulic or Pneumatic Brush Washes

There are different systems available utilising either hydraulic or pneumatic features along with the following choices, dependent on the system:

  • Washing height: 2.1m/2.4m/2.8m
  • Rail length: 10m/12m
  • Oleodinamic or pnuematic raising horizontal brush with 4 levels electronic control
  • Two brushes, aligned vertically, on pneumatic or electromechanical carriages with four levels electronic control
  • One central blade ’to copy’ and two 8Kw motofans with hydraulic or pneumatic lift
  • Hydraulic systems have two side blades with either 8Kw or 12.5Kw motofans
  • Emollient dispensing: Arch with pump and program with photocells to control vehicle position

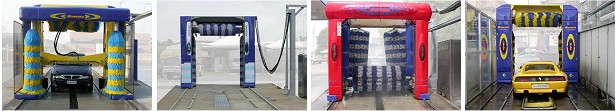

Choice of three brush drive through car washes

Features and Information

  • Corrosion resistant grey galvanised and painted construction
  • All ABS (Acrylonitrile Butadien Styrene) Fairings and stainless steel screws
  • Grey & blue brushes with grey fairing
  • Double Dragging motorisation with Inverter
  • Umbilical piles, cables & deriving box
  • 10 metre, corrosion resistant, hot galvanised anti-tipping rails
  • Buttons panel situated on the pile or near a wall
  • Control console with PLC (Programmable Logic Controller) with trouble shooting & programmes readers
  • Shampoo: Arch, nozzles and pneumatic dosing pump
  • Wax: Arch, nozzles and pneumatic dosing pump
  • Rinse: Arch and nozzles
  • Half-automatic winter drainage
  • Traffic control light imbedded in fairing
  • Arch for emollient dispensing
  • Vehicle alignment platforms
  • Centering pipes
  • 1.5Kw or 2.2Kw water pumps for supplying car wash
  • Pile support – pipes and cables
  • Machines are supplied for 400V – 50Hz – 3Ph power connection
  • Tension tolerance +/-5%
  • Different electrical ratings are available on request
